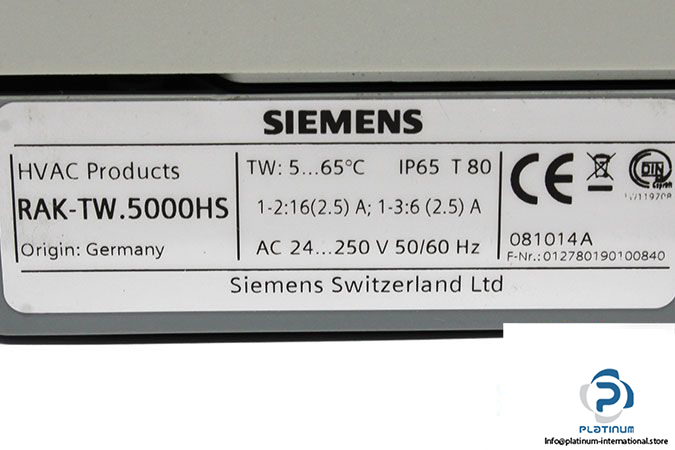

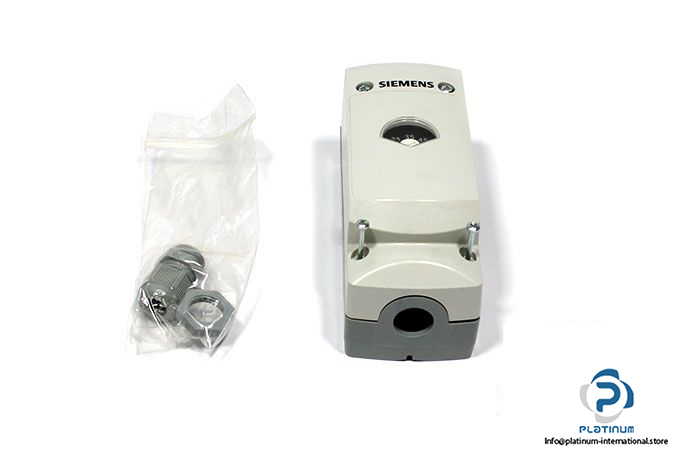

SIEMENS RAK-TW.5000HS FROST PROTECTION MONITOR
The SIEMENS RAK-TW.5000HS is a precision frost protection monitor featuring a liquid expansion sensor, designed to safeguard HVAC and industrial systems from freezing conditions. Its robust IP65-rated housing and wide setpoint range make it ideal for demanding environments.
Manufacturer: SIEMENS
Type: Frost Protection Monitor
Model: RAK-TW.5000HS
Part No.: 081014A
F NO: 012780190100840
Technical Information

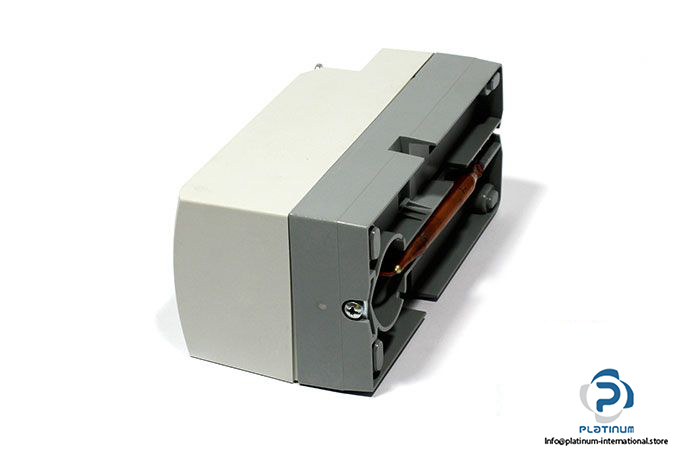

- Sensing Element: Liquid Expansion Sensor
- Setpoint Setting Range: 5 / 65 °C
- Switching Differential: 5 K
- Digital Output (Switching Voltage): AC 24 / 250 V
- Digital Output (Switching Current): Contact 1-2: 0.1 / 16 (2.5)A; Contact 1-3: 0.1 / 6 (2.5)A
- Digital Outputs: CO: 1, Potential-Free
- Degree of Protection: IP65
- Dimensions (W x H x D): 55 x 156 x 64 mm
- Capillary Length: 1600 mm
