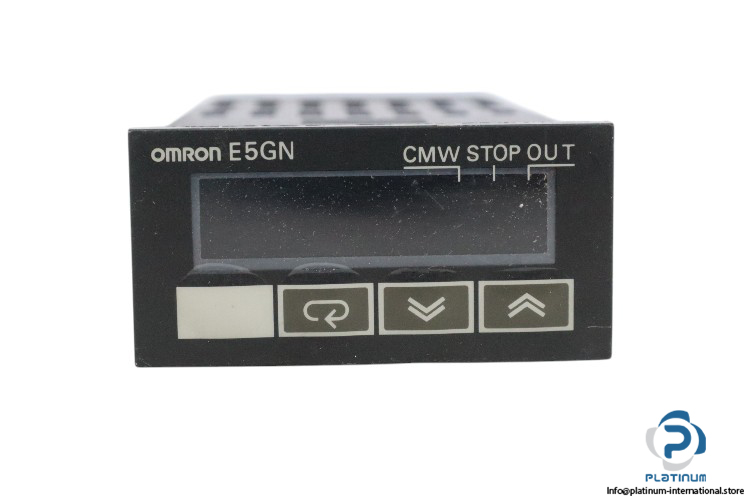

Omron E5GN-Q1P Digital Temperature Controller
Used
In stock4 unitsReady to ship
Omron Digital Temperature Controller E5GNQ1P with voltage output (for driving SSR), relay output SPST-NO, and 7-segment digital display. Suitable for a wide range of temperature sensors, including thermocouples and platinum resistance thermometers.
7-SegmentAdjustableControllerDigitalDisplayIndustrialInputManagementOmronOutputPlatinumRelayResistanceSensorSpst-NOSSRTemperatureThermocouplethermometervoltage
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

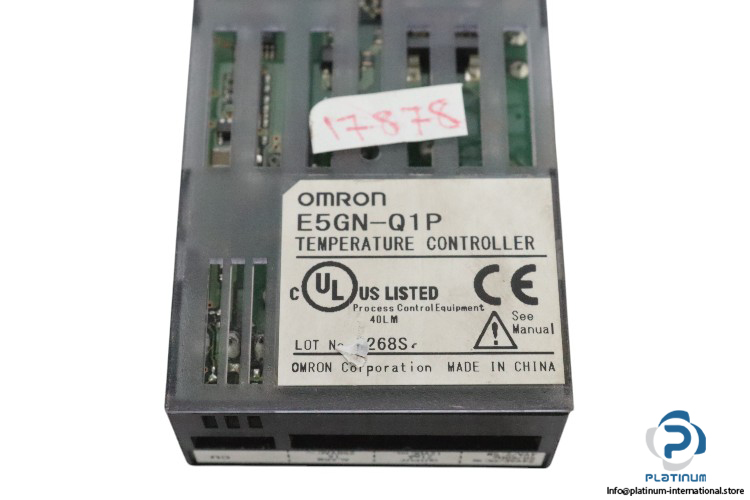

Omron Digital Temperature Controller E5GNQ1P
Omron Digital Temperature Controller E5GNQ1P is a versatile and reliable controller designed for precise temperature management in industrial applications. Below are the key technical specifications:
- Manufacturer: Omron
- Type: Digital Temperature Controller
- Model: E5GNQ1P
Technical Data:

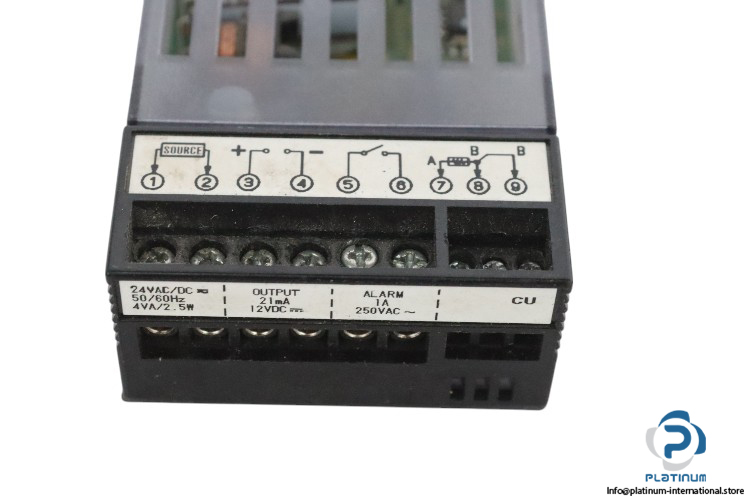

- Power Supply Voltage: 24 V AC/DC
- Frequency: 50/60 Hz
- Power: 4 VA/2.5 W
- Control Output: Voltage output (for driving SSR)
- Output: Relay output SPST-NO, 250 VAC, 2 A
- Output Voltage, Current: 12 VDC (PNP), max. load current: 21 mA
- Alarm Output: SPST-NO, 250 VAC, 1 A
- Setting Method: Digital setting using front panel keys
- Indication Method: 7-segment digital display and single-lighting indicator
- Sensor Input:
- Thermocouple: K, J, T, E, L, U, N, R, S, B
- Platinum resistance thermometer: Pt100, JPt100
- Dimensions: 48 x 24 x 100 mm
- Ambient Operating Temperature: -10 to 55°C
