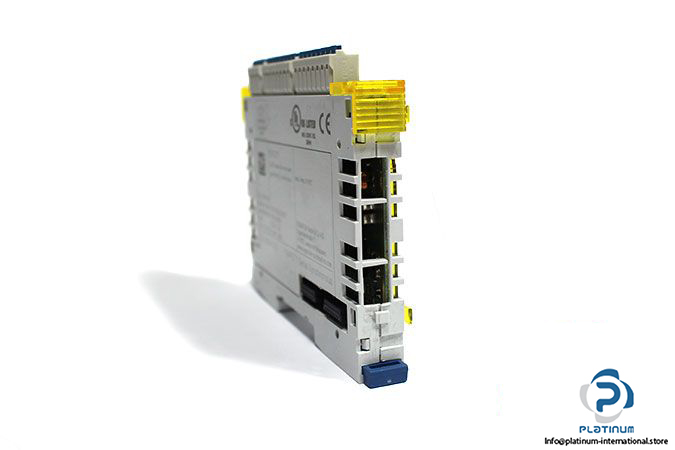

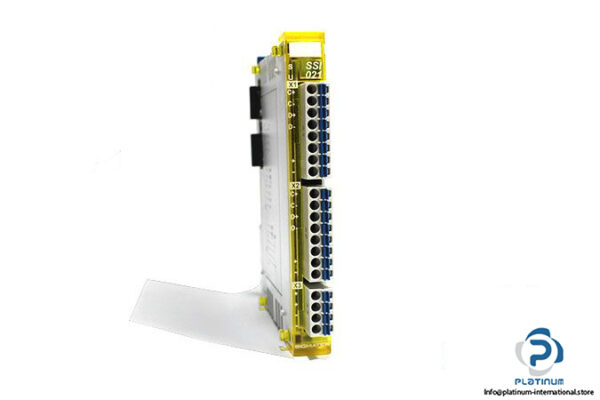

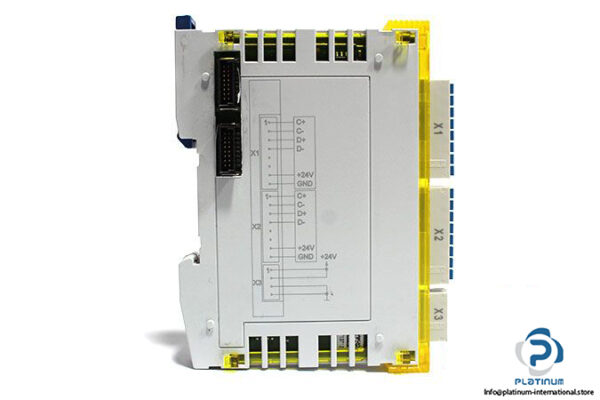

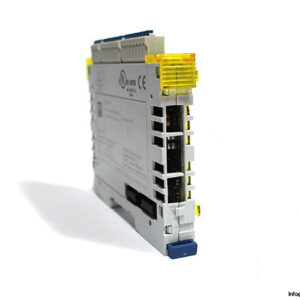

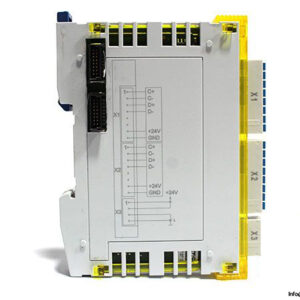

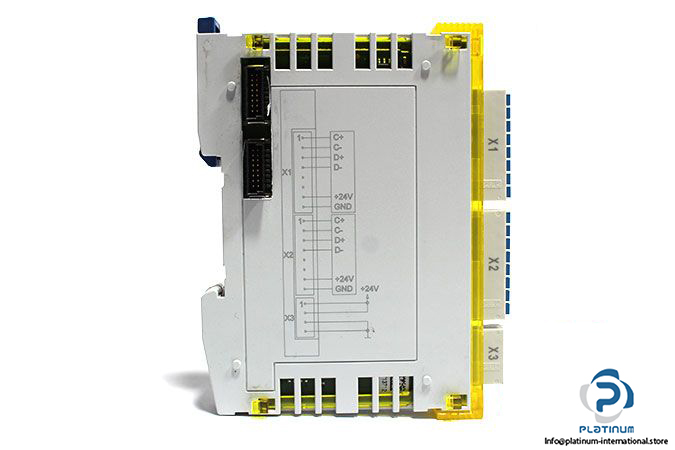

SIGMATEK SSI 021 SAFETY SSI ABSOLUTE VALUE ENCODER

The Sigmatek SSI 021 is a high-performance Safety SSI Absolute Value Encoder designed to deliver reliable and precise position feedback in industrial safety automation systems. Engineered for demanding environments, it features advanced resolution, flexible coding formats, and robust electrical data transfer options.

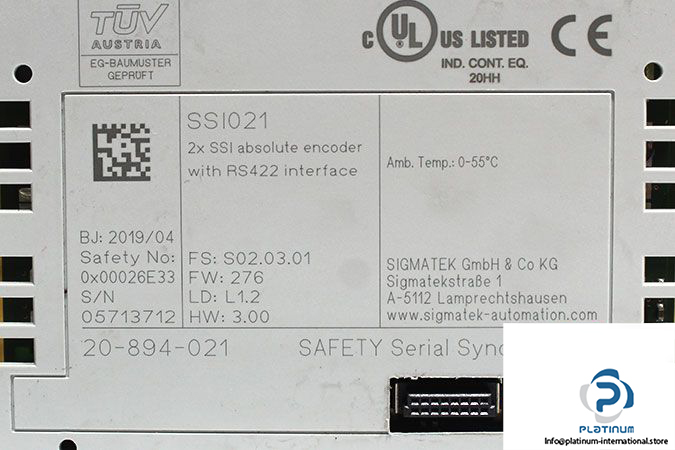

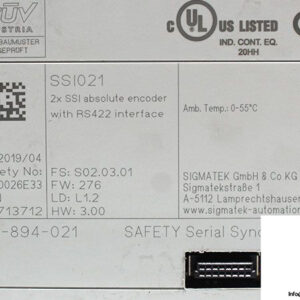

Manufacturer: Sigmatek
Type: Safety SSI Absolute Value Encoder
Model: SSI 021
Article No.: 20-894-021
Safety No.: 0x00026E33
Serial No.: 05713712
Reference No.: S02.03.01 / 276 / L1.2 / 3.00

Technical Information

• Number of Encoders: 2
• Encoder Type: Absolute Encoder with RS422 Interface
• Data Transfer Speed: 125 kHz to 1 MHz (Configurable)
• Maximum Resolution: 32 bits
• Coding: Binary / Gray
• Encoder Power Supply: +24 V, Max. 300 mA

Data Electrical

• Voltage Supply from Safety Bus: +12 V
• Current Consumption (+12 V): 70 / 100 mA
• Voltage Supply from S-DIAS Bus: +24 V
• Current Consumption (+24 V): 30 / 50 mA

Physical & Environmental Data

• Dimensions: 12.5 x 104.2 x 72 mm
• Protection Type: IP20
• Operating Temperature: 0 / 55 °C
• Humidity: 0 “ 95 %
