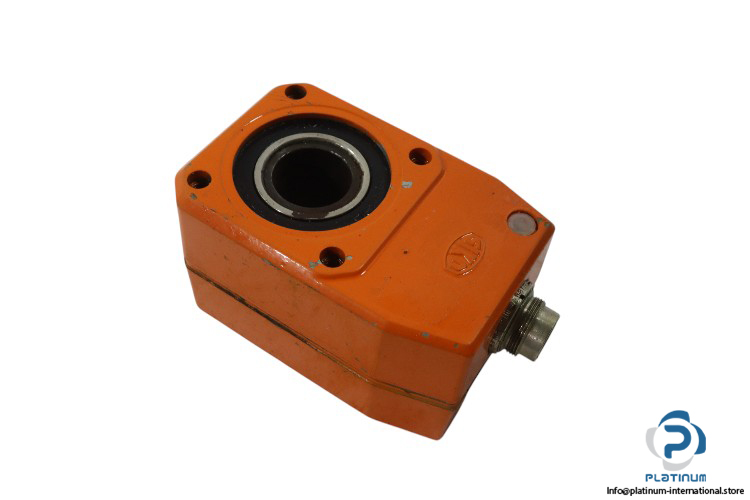

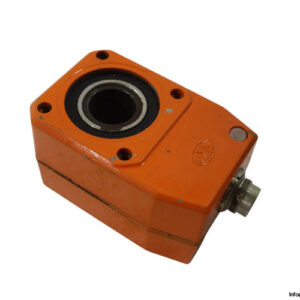

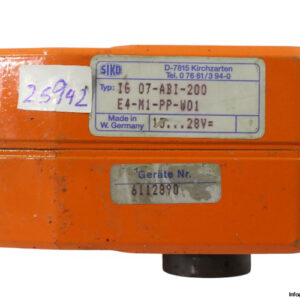

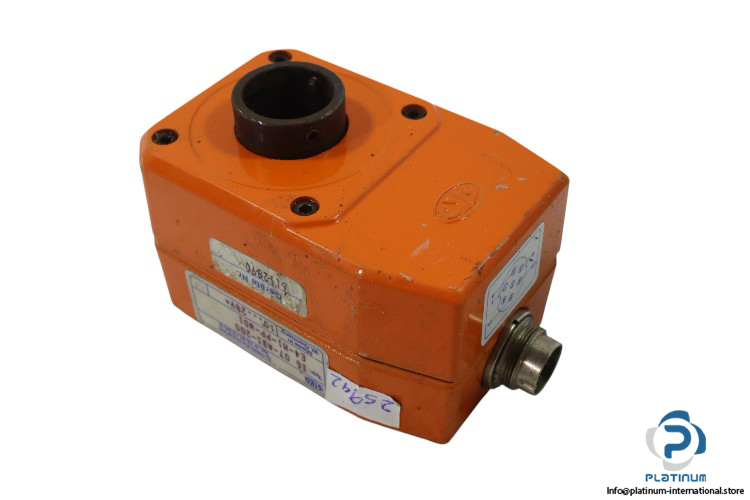

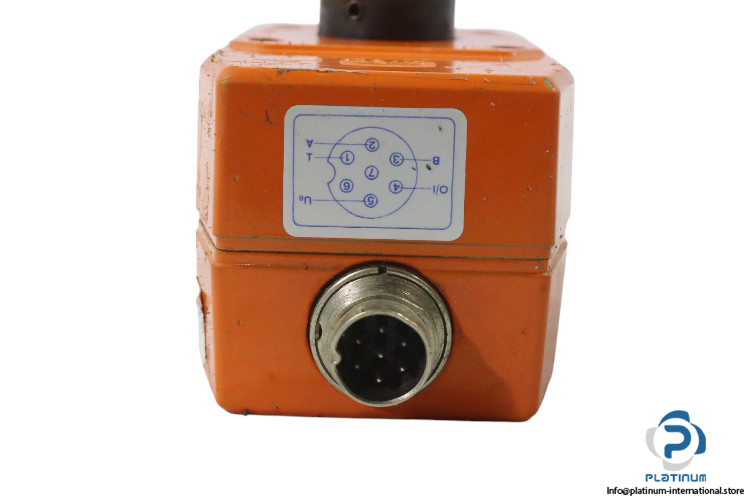

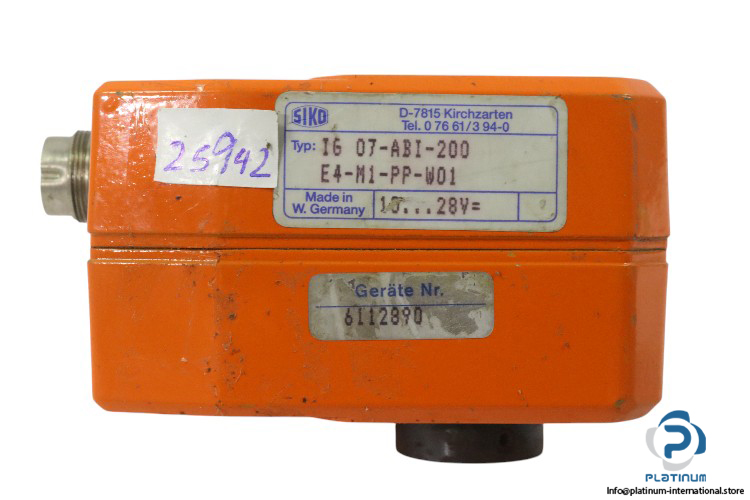

SIKO IG07-ABI-200 Incremental Encoder

The SIKO IG07-ABI-200 incremental encoder (Part No. E4-M1-PP-W01 / 6112890) is engineered for precision position detection in demanding industrial environments. It offers high resolution, a rugged housing, and excellent shaft load capacity, making it ideal for automation and control applications.

• Manufacturer: SIKO
• Type: Incremental Encoder
• Model: IG07-ABI-200
• Part No.: E4-M1-PP-W01 / 6112890

Technical Information:

• Operating Voltage: 10 / 30 V DC
• Current Consumption: 40 mA
• Through Hollow Shafts Up To: ø20 mm
• Maximum Resolution: 1024 pulses/revolution
• Housing Material: Zinc die-cast
• High Shaft Load Rating: Radial 5600 N, Axial 1400 N
• Degree of Protection: IP64, IP65
• Ambient Temperature: 60 °C
