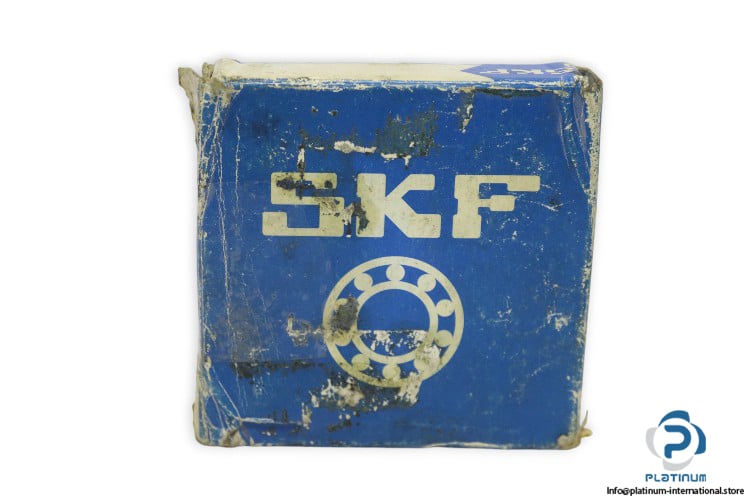

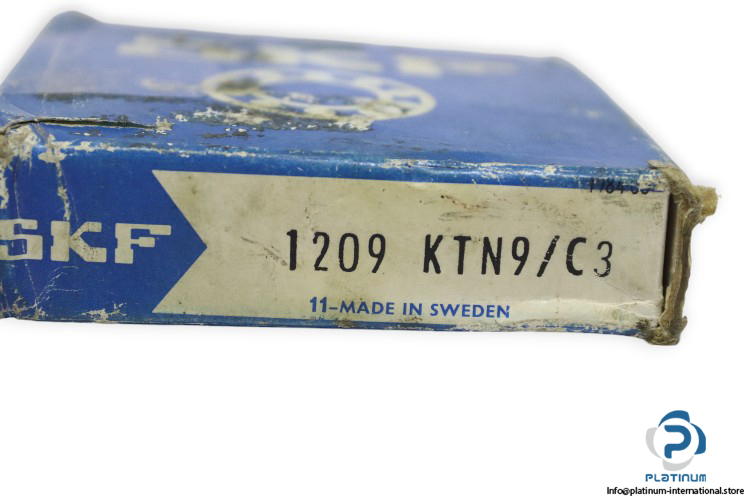

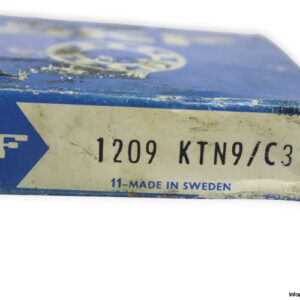

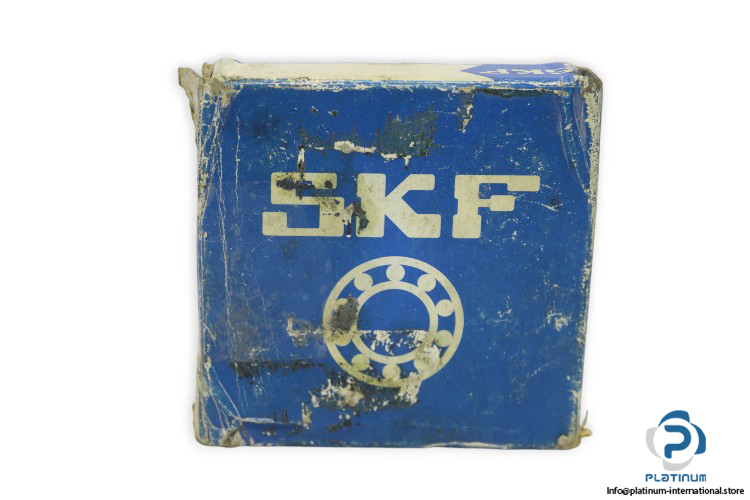

SKF 1209 KTN9/C3 Self-Aligning Ball Bearing
The SKF 1209 KTN9/C3 Self-Aligning Ball Bearing is designed to accommodate misalignment, ensuring smooth operation and reduced friction in various applications. With a tapered bore and a high-performance TN9 glass fibre reinforced cage, this bearing offers durability and reliability in demanding environments.
Manufacturer: SKF
Type: SELF-ALIGNING BALL BEARING
Model: 1209 KTN9/C3
Technical Information:
- Bore Diameter (d): 45 mm
- Outer Diameter (D): 85 mm
- Width (B): 19 mm
- Dynamic Load Rating: 22900 N
- Static Load Rating: 7800 N
- Limiting Speed: 11000 RPM
- Reference Speed: 17000 RPM
- Bore Type: Tapered 1:12
- Cage: TN9, Glass Fibre Reinforced PA66 Cage Centred
- Radial Internal Clearance: C3
This self-aligning ball bearing ensures reliable operation in applications requiring high speed and alignment compensation, making it an ideal choice for precision machinery.
