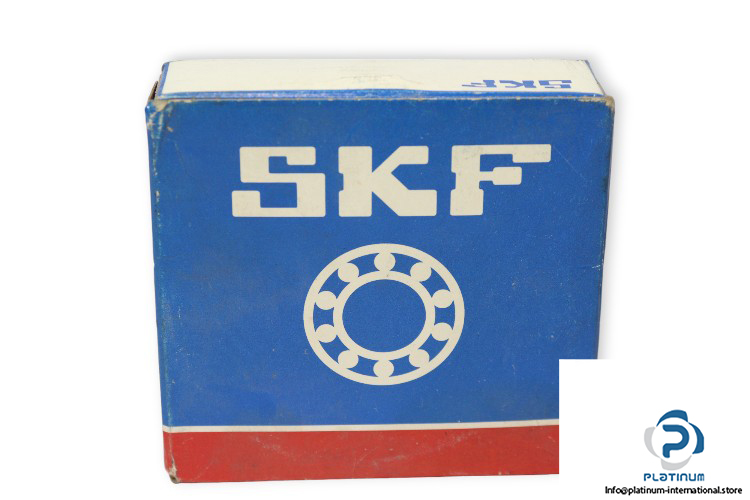

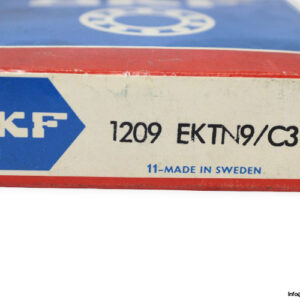

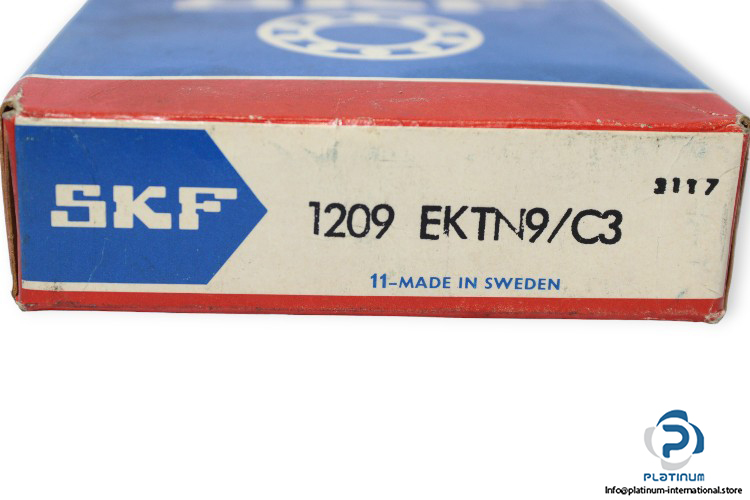

SKF 1209 EKTN9/C3 Self-Aligning Ball Bearing

Manufacturer: SKF
Type: Self-Aligning Ball Bearing with Tapered bore
Model: 1209EKTN9/C3

Bore Diameter d: 45 mm
Outer diameter D: 85 mm
Width B: 19 mm
Dynamic load rating: 22900 N
Static load rating: 7800 N
Limiting speed: 11000 RPM
Reference speed: 17000 RPM
Bore type: Tapered 1:12
Cage: TN9, Glass fibre reinforced PA66 cage centred
Radial internal clearance: C3
