NSK NAH65GMZ Linear Guideway Block

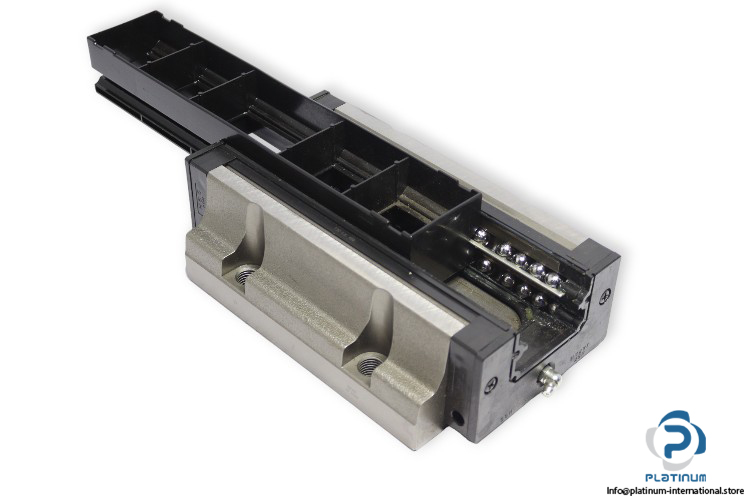

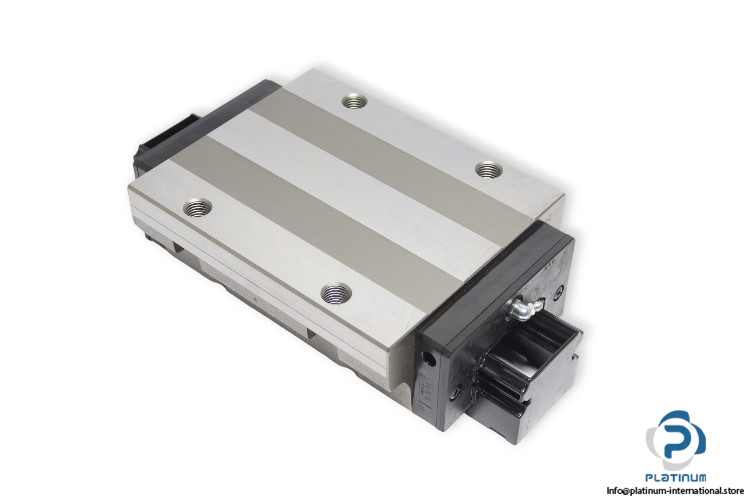

The NSK NAH65GMZ is a high-performance linear guideway block designed for heavy load applications. Featuring a square standard type design with light preload, it provides smooth motion, stability, and high load capacity across multiple axes, making it ideal for demanding industrial automation systems.

Manufacturer: NSK
Type: Linear Guideway Block NAH
Model: NAH65GMZ

Technical information

• Size: 65 mm
• Block Type: Square Standard Type
• Load Type: High Load
• Preload Class: Z – Light

Basic Load Ratings

• Dynamic C: 310000 N
• Static C0: 410000 N

Allowable Static Moment

• X axis MRO: 8950 Nm
• Y axis MYO: 8450 Nm
• Z axis MPO: 10100 Nm

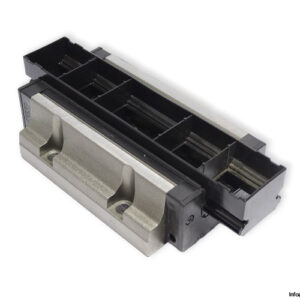

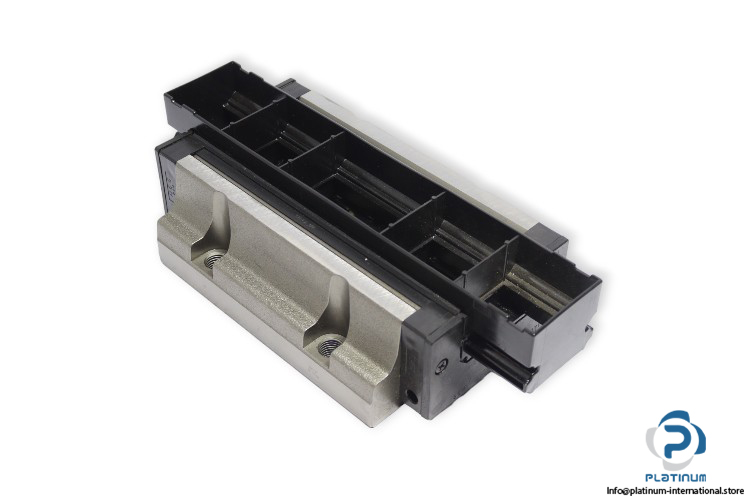

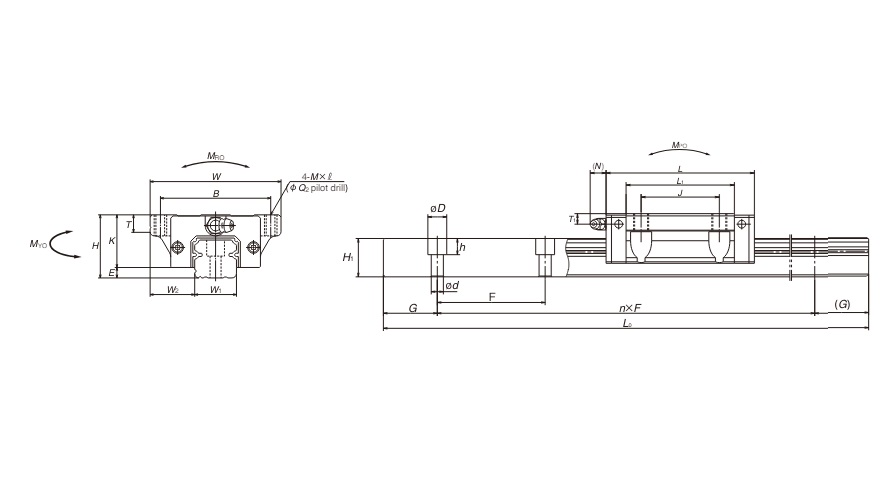

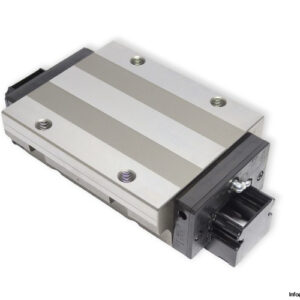

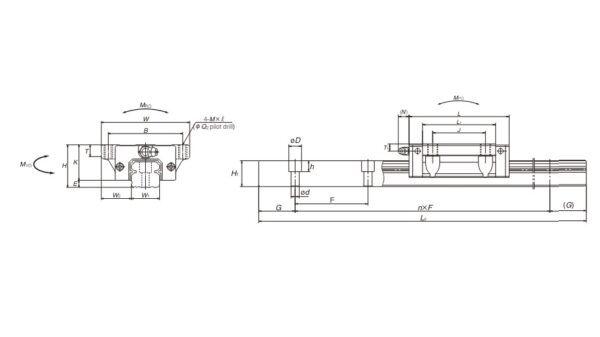

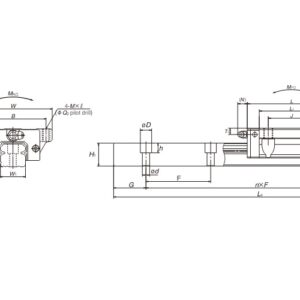

Dimensions

• Total Height H: 90 mm
• E: 16 mm
• Block Width W: 170 mm
• Block Length L (with double lubrication units): 253 mm
• B: 142 mm
• J: 110 mm
