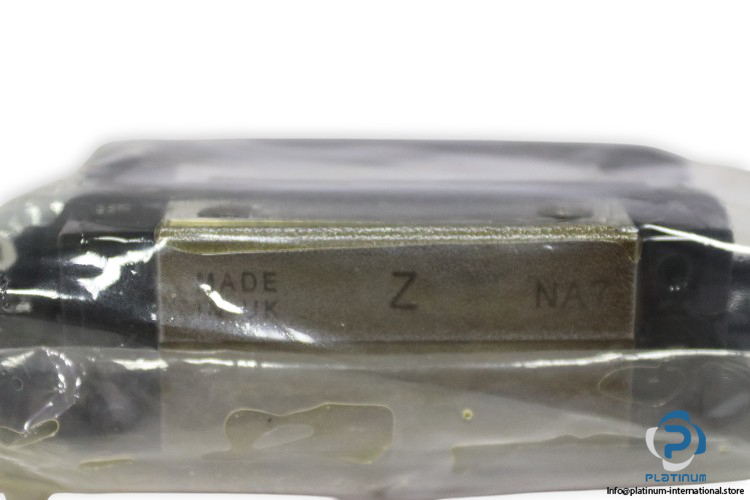

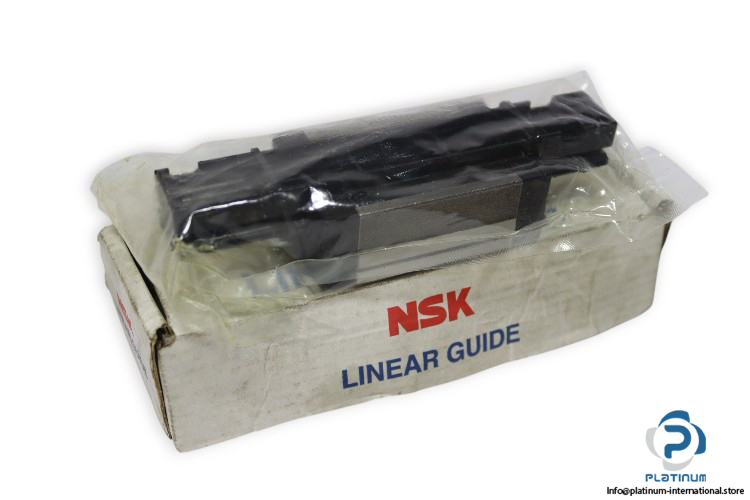

NSK NAH20ANZ Linear Guideway Block
New
In stock15 unitsReady to ship
LINEAR GUIDEWAY BLOCK
NSK NAH20ANZ Linear Guideway Block, 20 mm size, square standard type with slight preload, high load capacity, and precision motion. Dynamic load rating 23700 N, static load rating 32500 N.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
NSK NAH20ANZ LINEAR GUIDEWAY BLOCK
The NSK NAH20ANZ Linear Guideway Block is designed for high precision and high load applications. Built with advanced engineering, this square standard type block ensures smooth motion, stability, and durability across industrial systems.
Manufacturer: NSK
Type: Linear Guideway Block
Model: NAH20ANZ

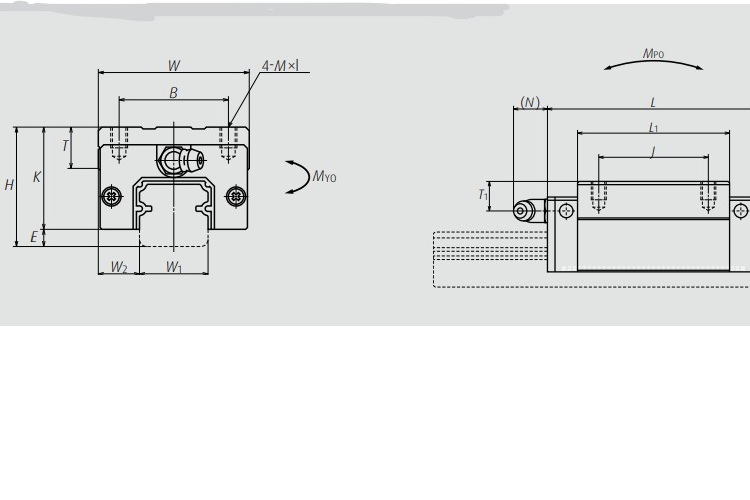

| Size | 20 mm |
| Total Height (H) | 30 mm |
| Block Width (W) | 44 mm |
| Block Length (L) | 69.8 mm |
| Block Height (K) | 25 mm |
| E | 5 mm |
| B | 32 mm |
| Random-Matching Ball Slide Series Code | NAH |
| Ball Slide Shape Code | AN |
| Preload | Z (Slight preload) |
| Block Type | Square Standard Type |
| Load Type | High Load |
| Basic Load Ratings | Dynamic C: 23700 N / Static C0: 32500 N |
| Allowable Static Moment | X axis MRO: 219 Nm, Y axis MYO: 185 Nm, Z axis MPO: 155 Nm |
