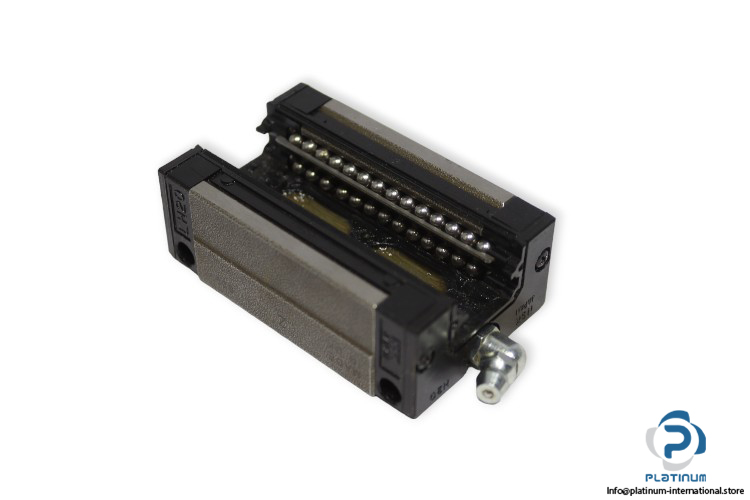

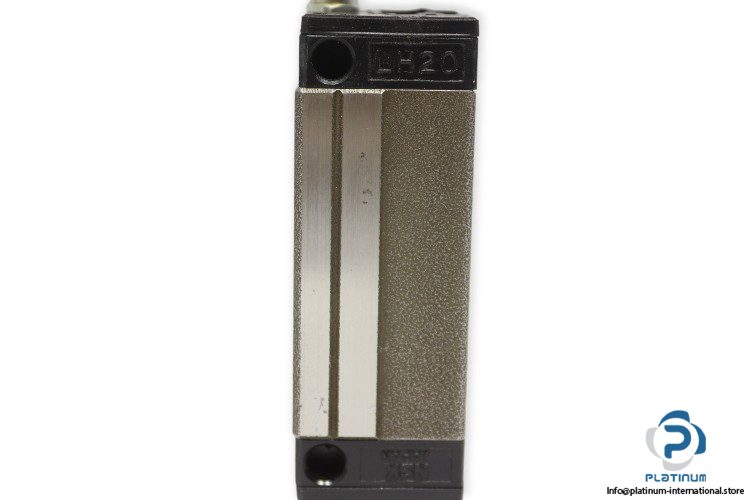

NSK LAH20ANZ Linear Bearing Block
Linear Guideway Block
NSK LH 20 square-type linear guideway block designed for smooth motion, high rigidity, and reliable load capacity in industrial applications.NSK LH 20 Linear Guideway Block
A precision-engineered linear guideway block designed by NSK for smooth, accurate, and stable linear motion in industrial automation and machinery applications. The LH 20 square-type block provides high rigidity, excellent load capacity, and reliable performance for demanding motion control systems. Manufacturer: NSK
Type: Linear Guideway Block
Model: LH 20
Recommendation:
Ideal for CNC machines, automation equipment, and precision positioning systems requiring smooth linear motion and high load capacity. For optimal performance and system integration, it is recommended to combine this linear guideway block with compatible linear rails, precision Sensors, and servo-driven motion solutions available from Platinum International.
| Size | 20 |
| Block Type | Square Type |

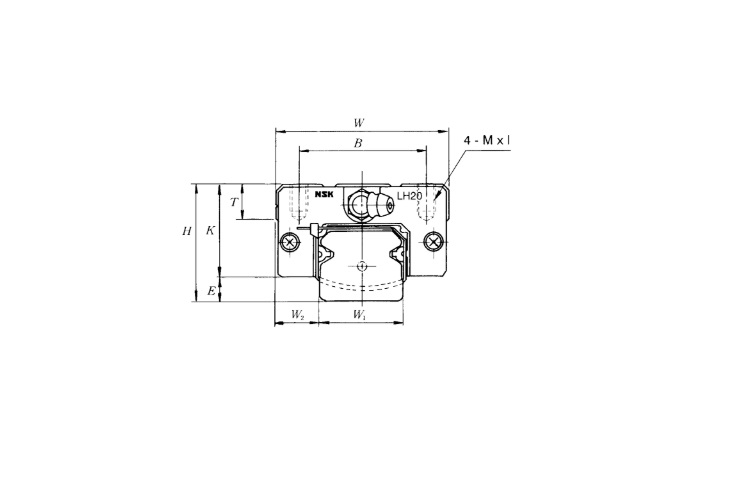

| Total Height (H) | 30 mm |
| Block Height (K) | 25 mm |
| Width (W) | 44 mm |
| Block Length (L) | 69.8 mm |
| B | 32 mm |
| J | 36 mm |
| L1 | 50 mm |
| Hole Size | M5 × 6 |
| Dynamic Load Rating (C) | 17,400 N |
| Static Load Rating (C0) | 32,500 N |
