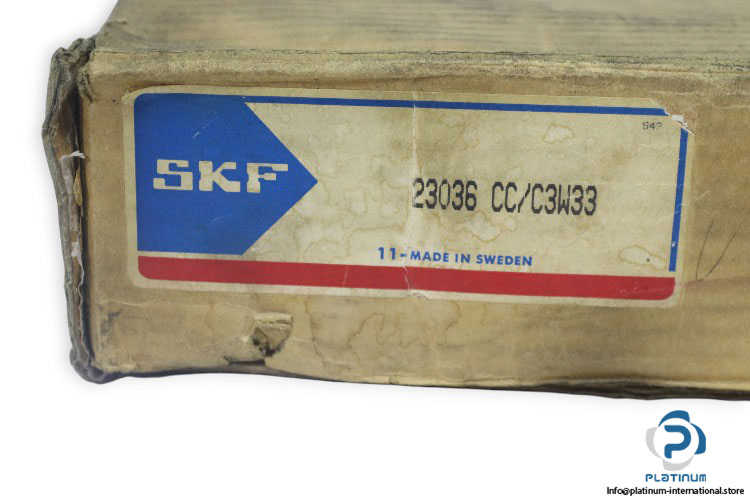

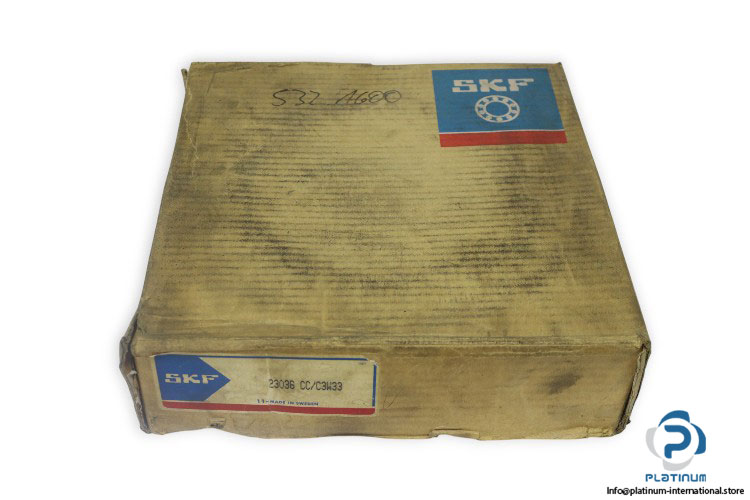

SKF 23036CC/C3W33 Spherical Roller Bearing

The SKF 23036CC/C3W33 is a precision-engineered spherical roller bearing designed for high-load applications and superior durability. It features relubrication capability with an annular groove and three lubrication holes, ensuring long service life and consistent performance under demanding conditions.

Manufacturer: SKF
Type: Spherical Roller Bearing with Relubrication Features
Model: 23036CC/C3W33

Technical Information

• Bore Diameter (d): 180 mm
• Outer Diameter (D): 280 mm
• Width (B): 74 mm
• Dynamic Load Rating (Cr): 883,000 N
• Static Load Rating (C0r): 1,250,000 N
• Limiting Speed: 2600 rpm
• Reference Speed: 2000 rpm
• Lubrication: W33, Annular Groove and Three Lubrication Holes in Outer Ring
• Design: CC, Optimized Internal Design
• Clearance: C3
