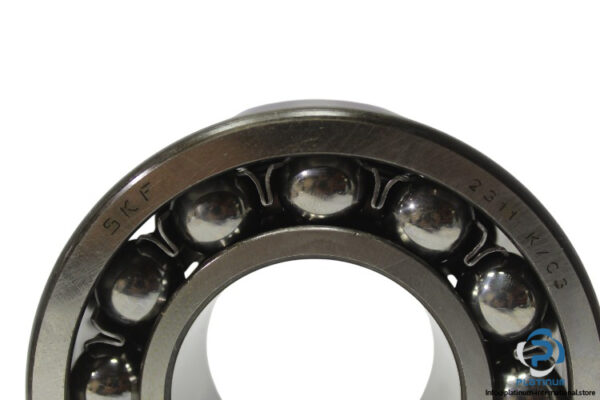

SKF 2311 K/C3 Self-Aligning Ball Bearing
The SKF 2311 K/C3 Self-Aligning Ball Bearing is engineered to accommodate misalignment and shaft deflection, making it ideal for applications with shaft bending or mounting inaccuracies. Its C3 radial internal clearance and tapered bore (K) ensure smooth operation under varying loads and speeds.
Manufacturer: SKF
Type: Self-Aligning Ball Bearing
Model: 2311 K/C3
Technical Information:
- Bore Diameter (d): 55 mm
- Outer Diameter (D): 120 mm
- Width (B): 43 mm
- Dynamic Load Rating (Cr): 76,100 N
- Static Load Rating (C0r): 24,000 N
- Limiting Speed: 7500 rpm
- Reference Speed: 11,000 rpm
- Cage Material: Sheet Metal
- Radial Internal Clearance: C3
- Bore Type: K (Tapered Bore)
