SKF 2311 K/C3 Self-Aligning Ball Bearing
New
In stock1 unitReady to ship
Self-Aligning Ball Bearing
The SKF 2311 K/C3 is a high-performance self-aligning ball bearing with a tapered bore (K) and C3 clearance. Featuring a 55 mm bore and 120 mm outer diameter, it supports speeds up to 11,000 rpm while compensating for misalignment.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

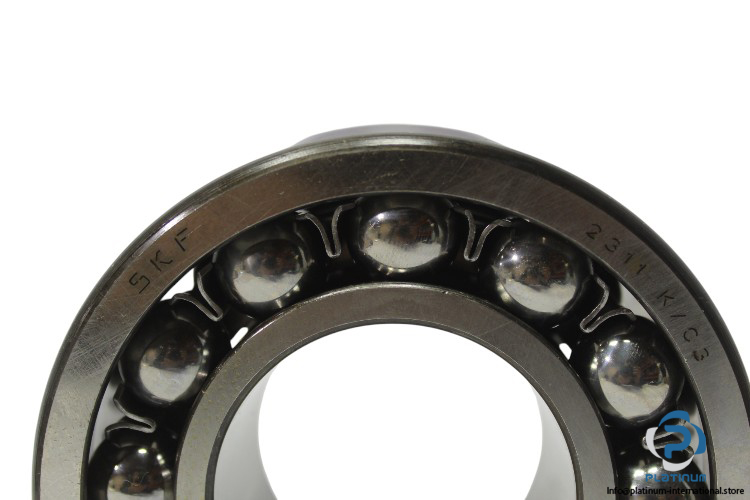

SKF 2311 K/C3 Self-Aligning Ball Bearing
The SKF 2311 K/C3 Self-Aligning Ball Bearing is engineered to accommodate misalignment and shaft deflection, making it ideal for applications with shaft bending or mounting inaccuracies. Its C3 radial internal clearance and tapered bore (K) ensure smooth operation under varying loads and speeds.
Manufacturer: SKF
Type: Self-Aligning Ball Bearing
Model: 2311 K/C3
| Bore Diameter (d) | 55 mm |
| Outer Diameter (D) | 120 mm |
| Width (B) | 43 mm |
| Dynamic Load Rating (Cr) | 76,100 N |
| Static Load Rating (C0r) | 24,000 N |
| Limiting Speed | 7500 rpm |
| Reference Speed | 11,000 rpm |
| Cage Material | Sheet Metal |
| Radial Internal Clearance | C3 |
| Bore Type | K (Tapered Bore) |
