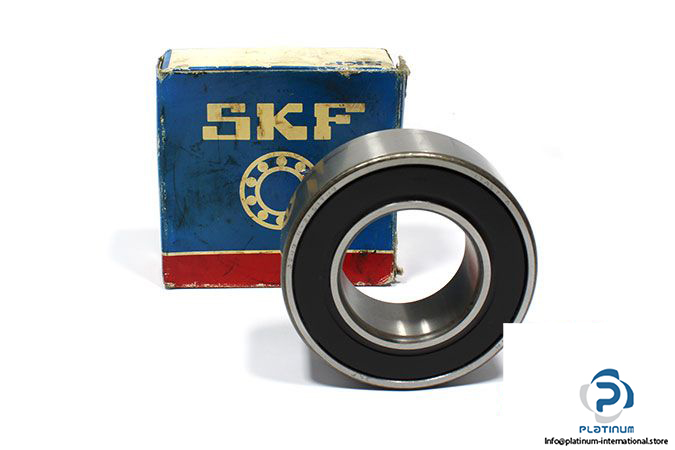

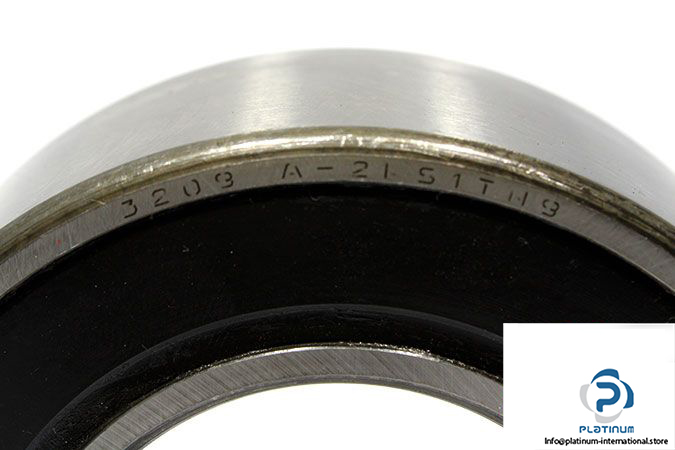

Manufacturer: SKF

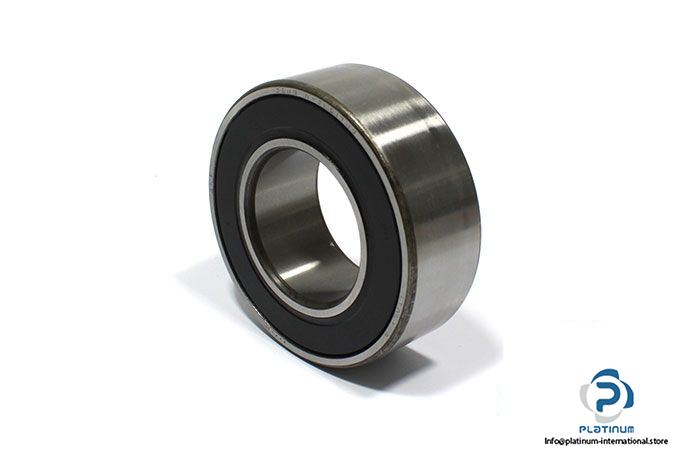

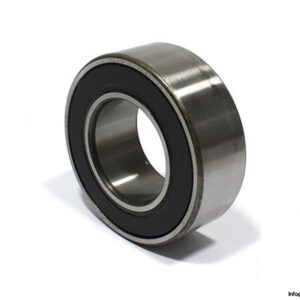

Type: Double Row Angular Contact Ball Bearing

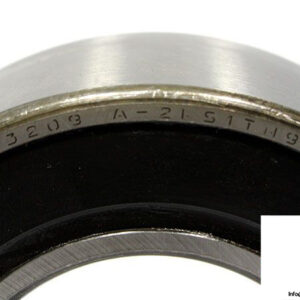

Model: 3209A 2RS1TN9

Replaces: 3209 A-2RS1TN9/MT33

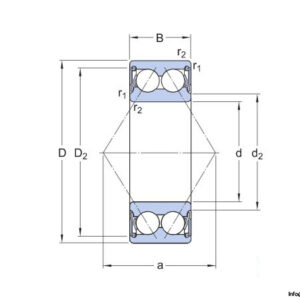

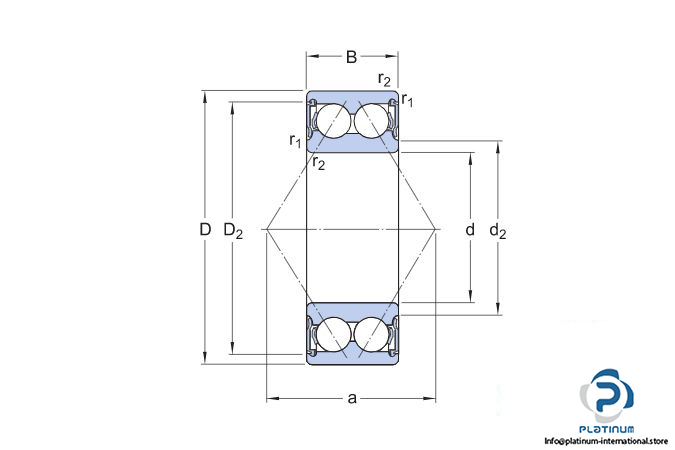

Dimensions

Bore Diameter d: 45 mm

Outer diameter D: 85 mm

Width B: 30.2 mm

Contact angle: 30 °

Basic load ratings:

Dynamic C: 52 kN

Static C₀: 41.5 kN

Fatigue load limit P_u: 1.76 kN

Limiting speed: 5300 rpm

Seal: Contact seal, NBR, on both sides

Cage: TN9, Glass fibre reinforced PA66 cage
