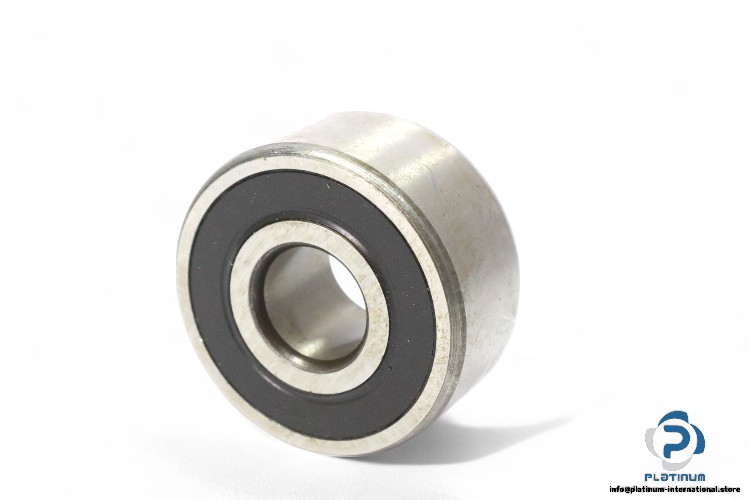

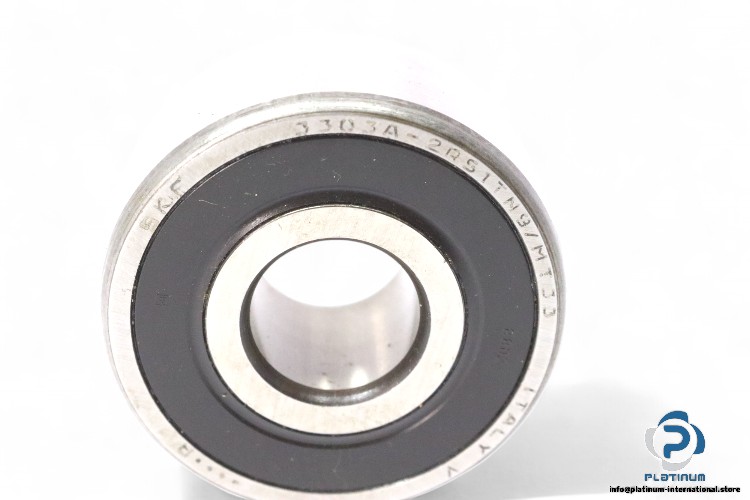

SKF 3303A-2RS1TN9/MT33 Double Row Angular Contact Ball Bearing
The SKF 3303A-2RS1TN9/MT33 Double Row Angular Contact Ball Bearing is designed for high-performance applications requiring durability and precision. With a contact angle of 30° and a glass-fiber reinforced PA66 cage, this bearing provides excellent load capacity and resistance to medium temperature ranges.
- Manufacturer: SKF
- Type: Double Row Angular Contact Ball Bearing
- Model: 3303A-2RS1TN9/MT33
Technical Information
- Bore Diameter (d): 17 mm
- Outer Diameter (D): 47 mm
- Width (B): 22.2 mm
- Contact Angle: 30°
- Basic Load Ratings, Radial:
- Dynamic (Cr): 21.6 kN
- Static (C0r): 12.7 kN
- Fatigue Load Limit: 0.54 kN
- Limiting Speed: 11,000 r/min
- Seal: 2RS1, Contact Seal on Both Sides
- Cage: TN9, Glass-Fiber Reinforced PA66 Cage
- Temperature: MT33, Suitable for Medium Temperature Ranges
