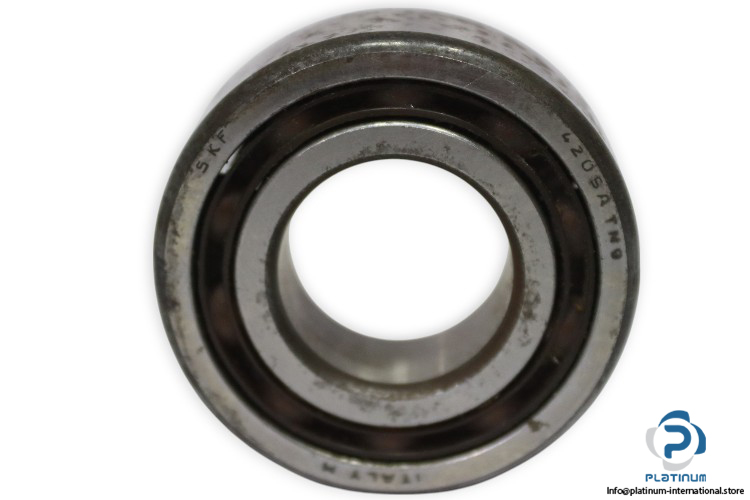

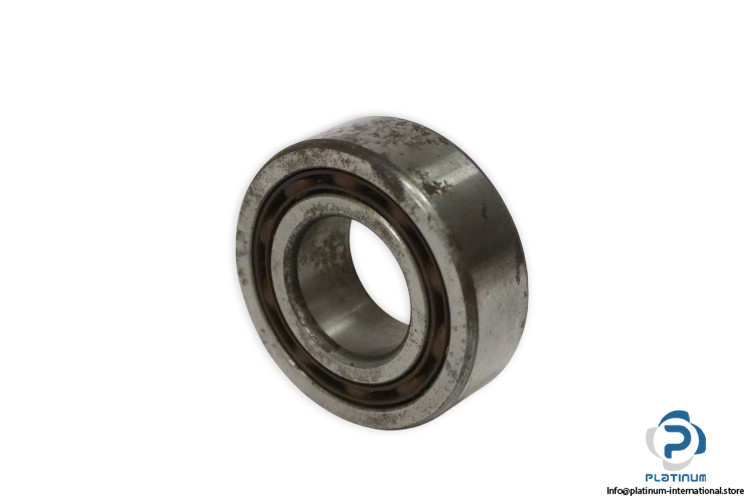

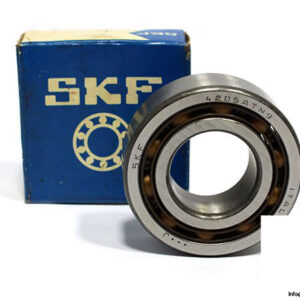

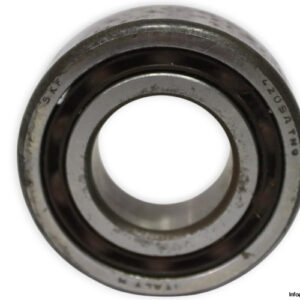

SKF 4205ATN9 DOUBLE ROW DEEP GROOVE BALL BEARING
The SKF 4205ATN9 is a high-quality double row deep groove ball bearing designed for applications requiring high load capacity and reliable performance. Equipped with a glass fibre reinforced PA66 cage, it offers excellent durability and stability at high speeds.
Manufacturer: SKF
Type: Double Row Deep Groove Ball Bearing
Model: 4205ATN9
Technical Information
- Bore Diameter (d): 25 mm
- Outer Diameter (D): 52 mm
- Width (B): 18 mm
- Chamfer Dimension (r1,2 min): 1 mm
- Dynamic Load Rating (C): 19 kN
- Static Load Rating (C0): 14.6 kN
- Fatigue Load Limit (Pu): 0.62 kN
- Reference Speed: 20,000 rpm
- Limiting Speed: 11,000 rpm
- Cage: TN9, Glass fibre reinforced PA66 cage
