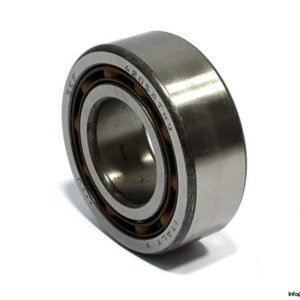

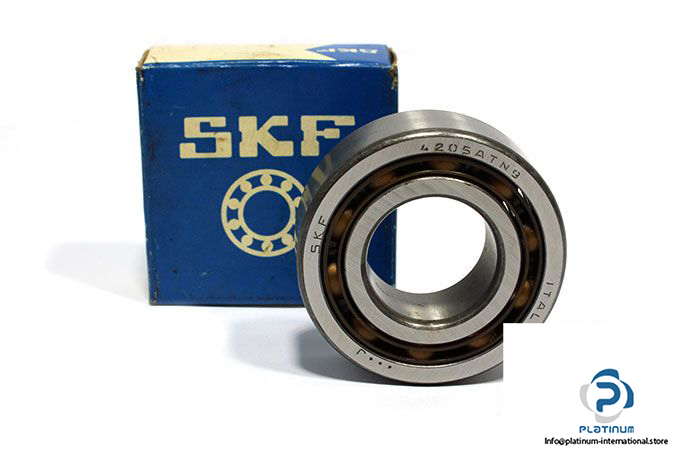

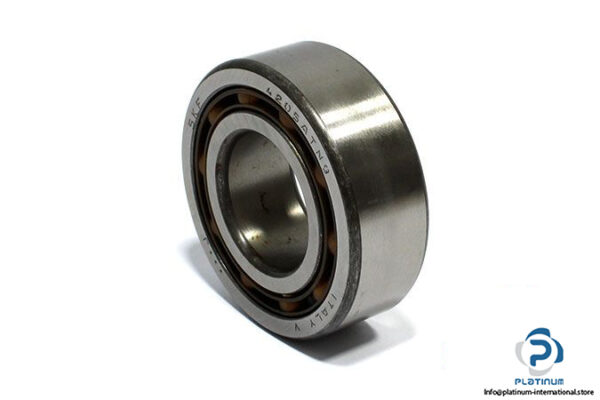

SKF 4205 ATN9 Double ROW Deep Groove Ball Bearing
In stock22 unitsReady to ship
DOUBLE ROW DEEP GROOVE BALL BEARING
SKF 4205ATN9 Double Row Deep Groove Ball Bearing with 25 mm bore, 52 mm outer diameter, 18 mm width, and TN9 glass fibre reinforced cage for high-speed, durable operation.18254205ATN952BallbearingboreCageDeepdiameterDoubleFibreGlassGrooveHighmmOuterreinforcedRowSKFSpeedTN9Width
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

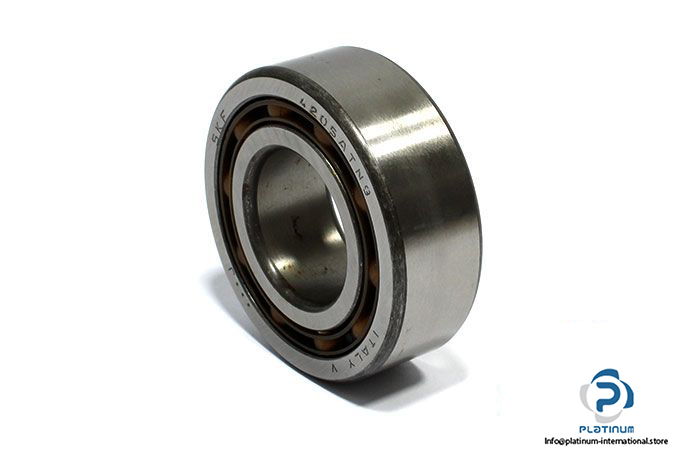

SKF 4205ATN9 DOUBLE ROW DEEP GROOVE BALL BEARING
The SKF 4205ATN9 is a high-quality double row deep groove ball bearing designed for applications requiring high load capacity and reliable performance. Equipped with a glass fibre reinforced PA66 cage, it offers excellent durability and stability at high speeds.
Manufacturer: SKF
Type: Double Row Deep Groove Ball Bearing
Model: 4205ATN9

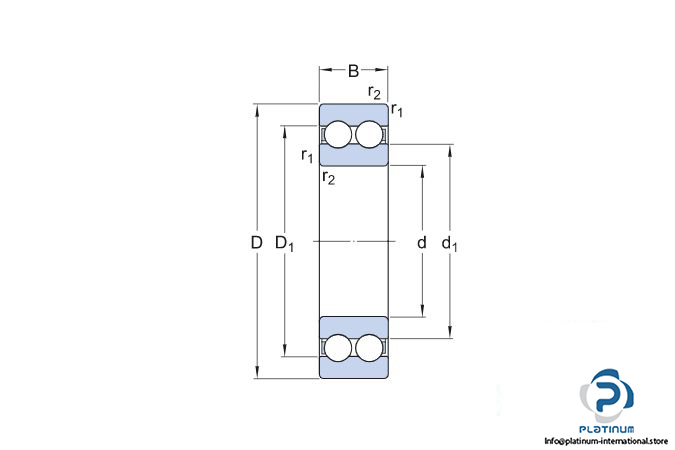

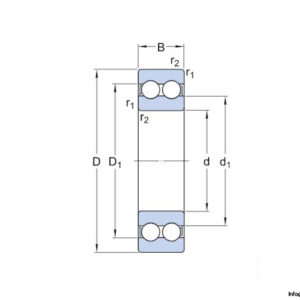

| Bore Diameter (d) | 25 mm |
| Outer Diameter (D) | 52 mm |
| Width (B) | 18 mm |
| Chamfer Dimension (r1,2 min) | 1 mm |
| Dynamic Load Rating (C) | 19 kN |
| Static Load Rating (C0) | 14.6 kN |
| Fatigue Load Limit (Pu) | 0.62 kN |
| Reference Speed | 20,000 rpm |
| Limiting Speed | 11,000 rpm |
| Cage | TN9, Glass fibre reinforced PA66 cage |
