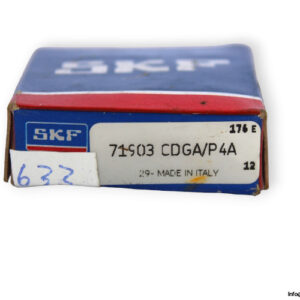

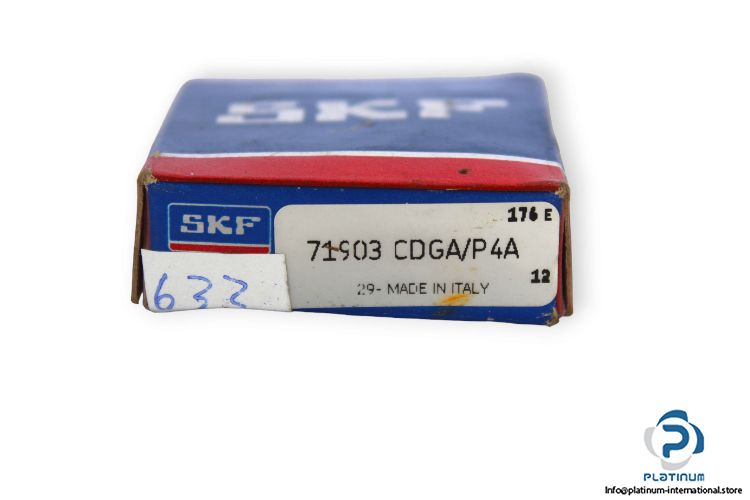

SKF 71903CDGA/P4A Angular Contact Ball Bearing

The SKF 71903CDGA/P4A is a high-precision angular contact ball bearing engineered for demanding applications where accuracy, speed, and reliability are critical. Manufactured from premium bearing steel and built to tolerance class P4A, it offers excellent load capacity and extended service life.

Manufacturer: SKF
Type: Angular Contact Ball Bearing
Model: 71903CDGA/P4A

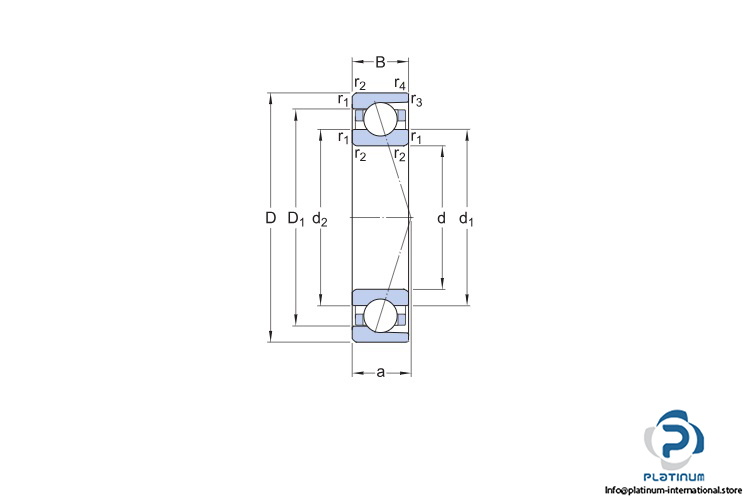

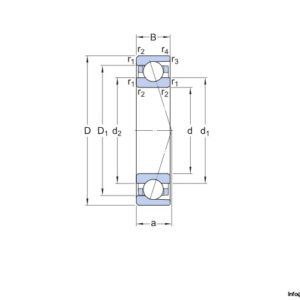

Technical information

• Bore Diameter (d): 17 mm
• Outer Diameter (D): 30 mm
• Width (B): 7 mm
• Contact Angle (α): 15°
• Basic Dynamic Load Rating: 4.16 kN
• Basic Static Load Rating: 2.08 kN
• Fatigue Load Limit: 0.088 kN
• Material (Bearing): Bearing steel
• Tolerance Class: P4A
