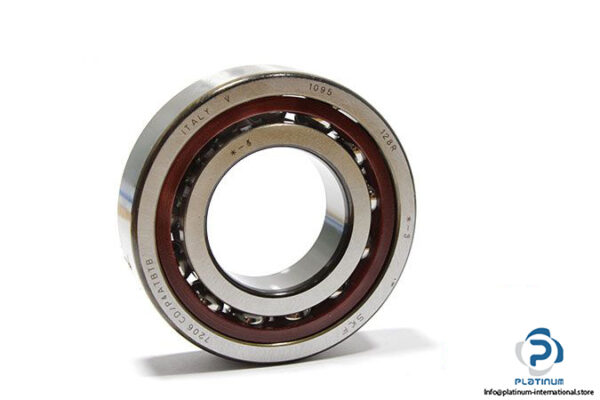

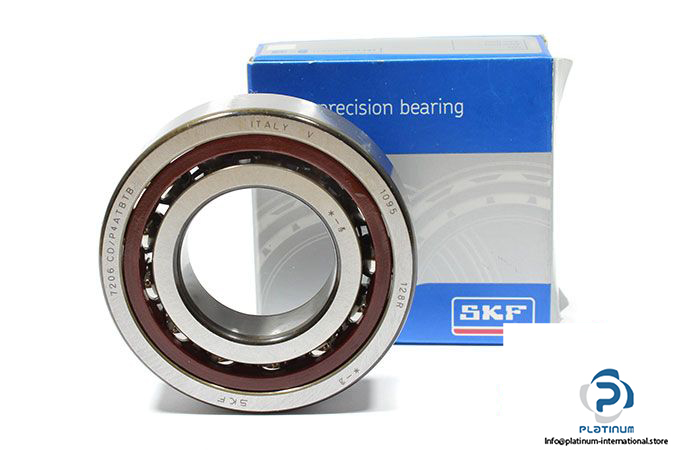

Manufacturer: SKF

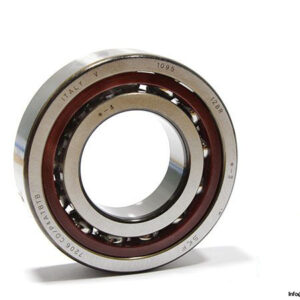

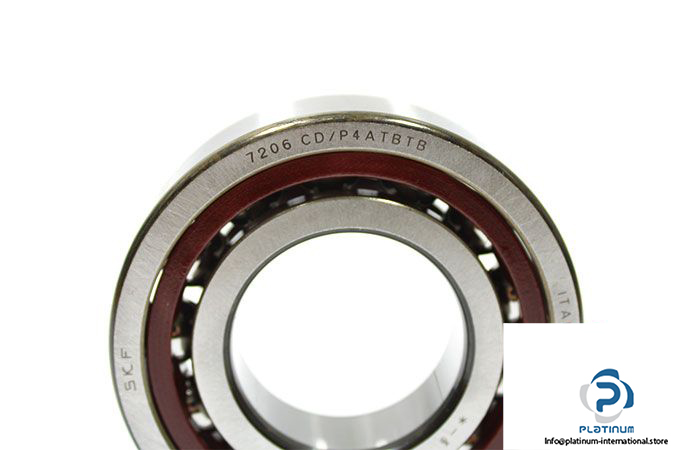

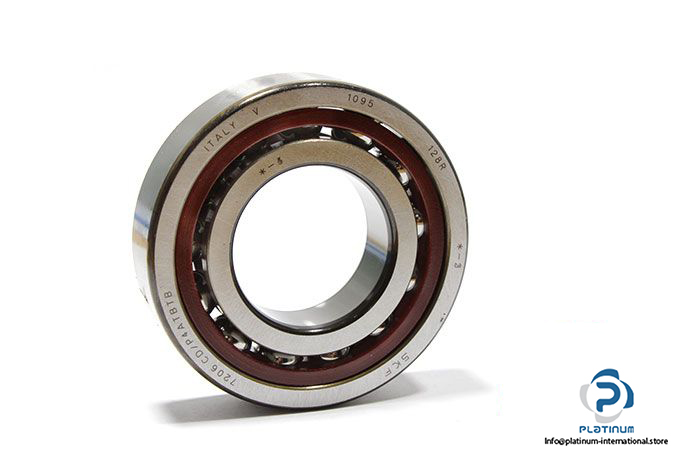

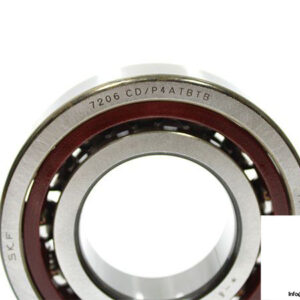

Type: Angular Contact Ball Bearing
Model: 7206 CD/P4A TBTB

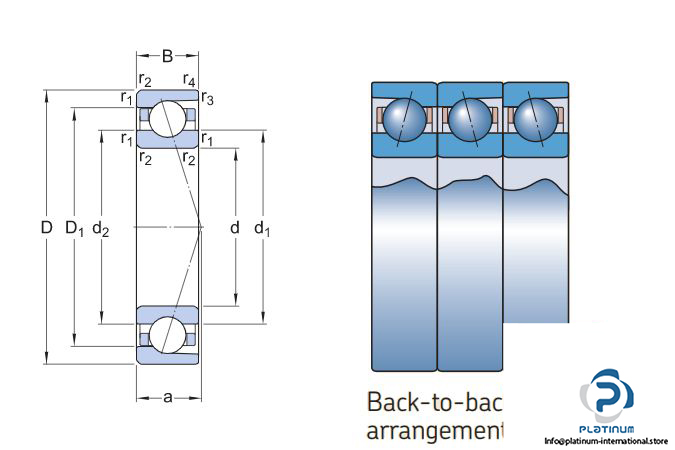

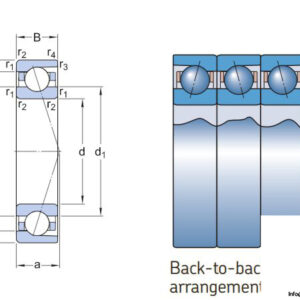

Dimensions
Bore Diameter d: 30 mm
Outer diameter D: 62 mm
Width B: 16 mm
Contact angle α: 15 °
Calculation Data For Bearing Set (back-to-back and tandem)
Basic load ratings:
Dynamic C: 52.2 kN
Static C0: 48 kN
Fatigue load limit Pu: 2 kN
Attainable speed for grease lubrication: 15120 rpm
Attainable speed for oil-air lubrication : 23940 rpm
Axial Preload: 243 N
Static axial stiffness: 85.5 N/µm
Cage: Cotton Fabric Reinforced Phenolic Resin Cage
Weight: 0.62 kg
