Manufacturer: SKF

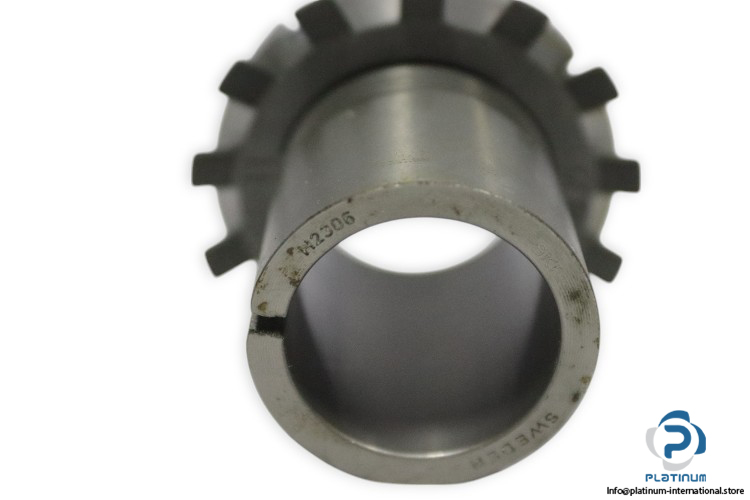

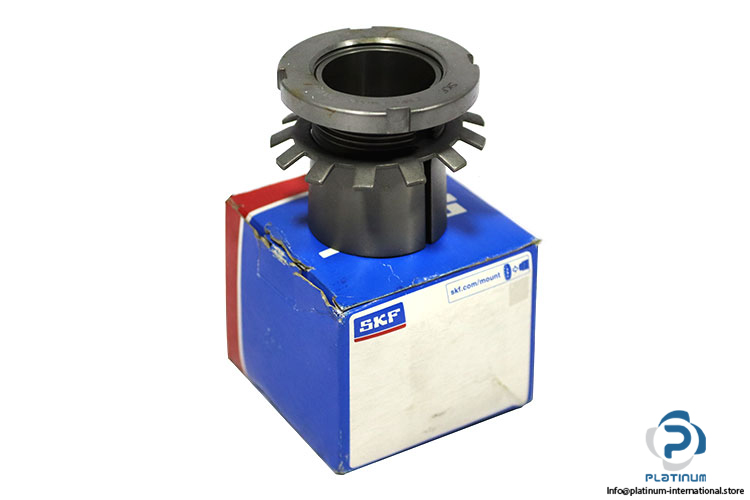

Type: ADAPTER SLEEVE

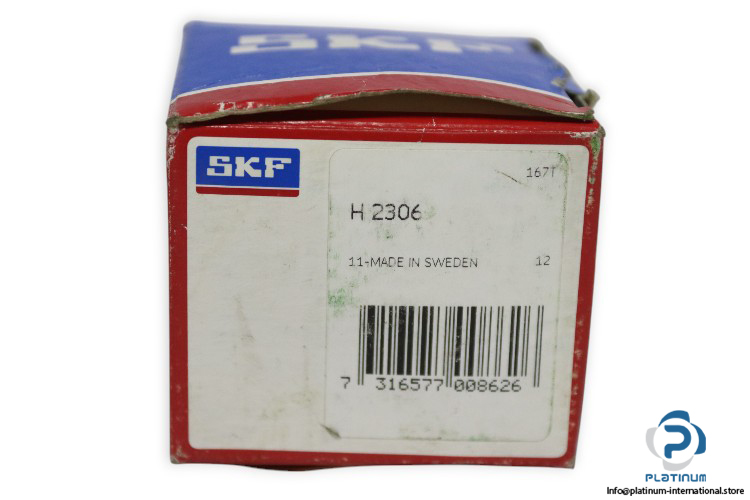

Model: H2306

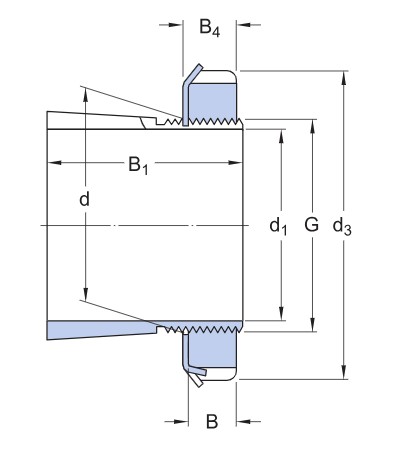

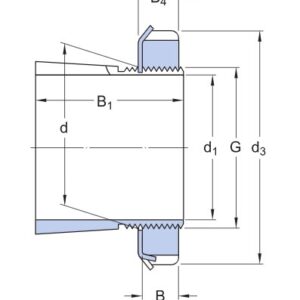

Dimensions:
Bore Diameter d₁: 25 mm
Outside diameter small taper d: 30 mm
Outer diameter lock nut d₃: 45 mm
Width lock nut B: 7 mm
Width B₁: 38 mm
Width lock nut including lock washer B₄: 8 mm
Thread G: M30x1.5
External taper: 1:12

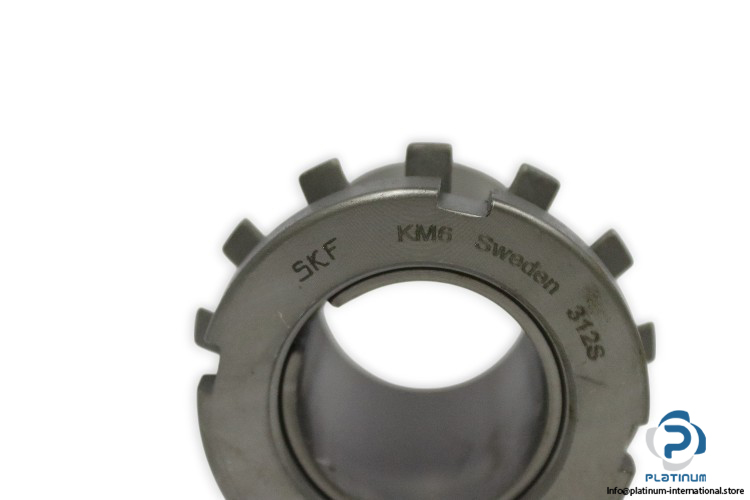

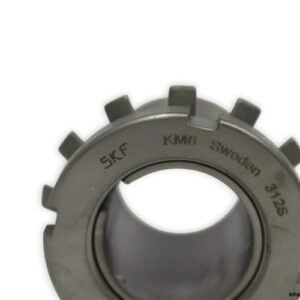

Locknut: KM 6

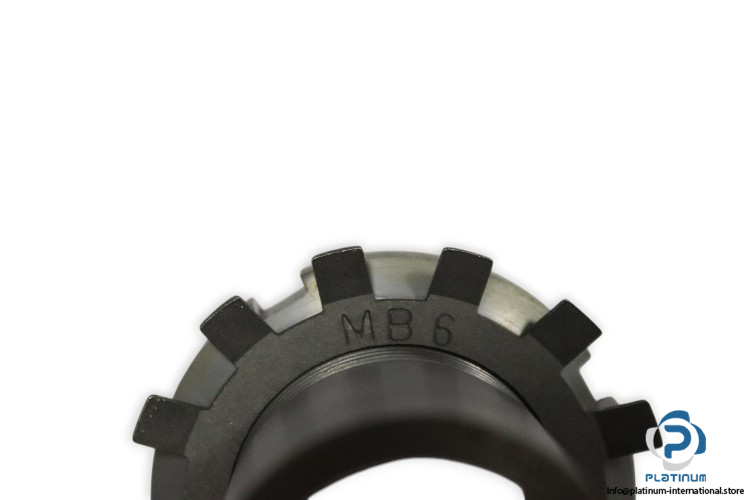

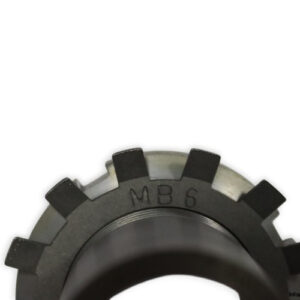

Lock washer: MB 6
