SKF HE 322 Adapter Sleeve
New
In stock1 unitReady to ship
Adapter Sleeve
The SKF HE 322 Adapter Sleeve features a 101.6 mm bore diameter, lock nut, and lock washer, designed to securely mount bearings onto shafts with precision and reliability.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

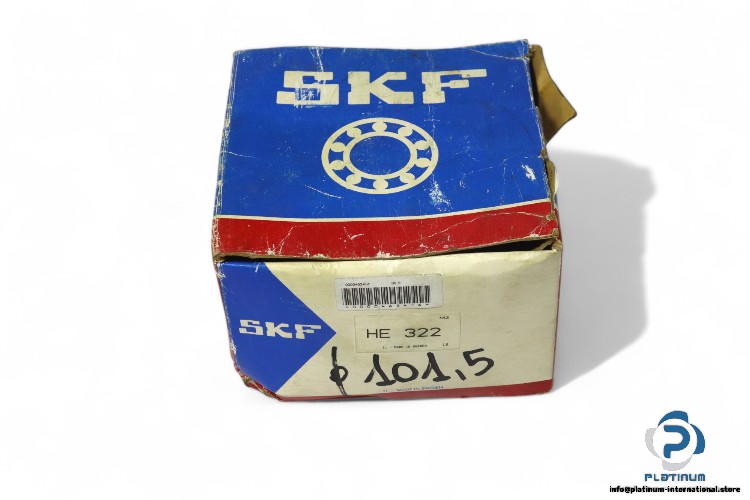

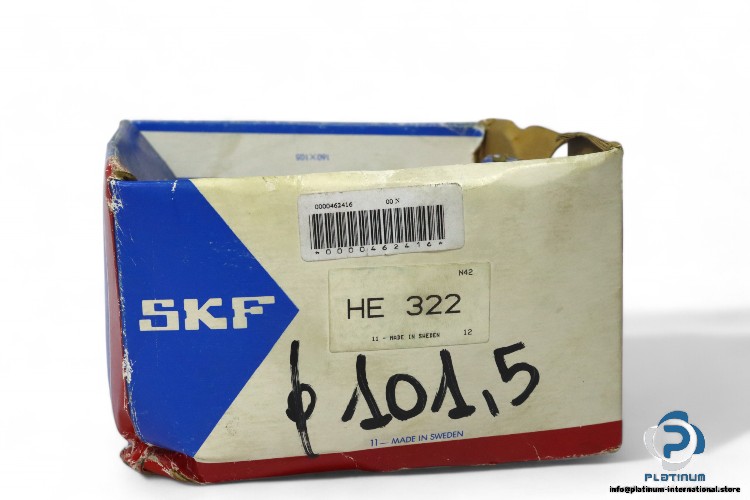

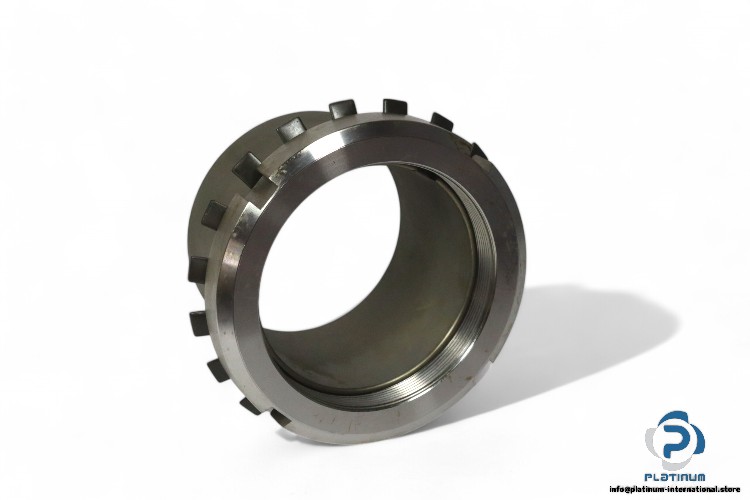

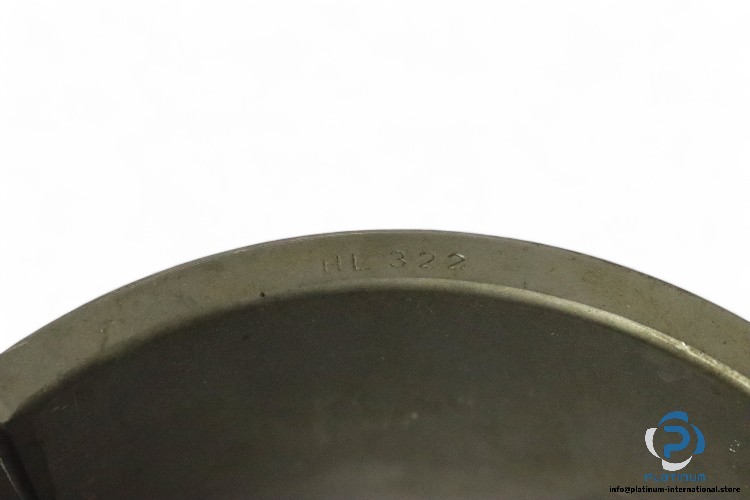

SKF HE 322 Adapter Sleeve
The SKF HE 322 Adapter Sleeve is designed to securely fit bearings onto shafts. It features precise dimensions and is equipped with a lock nut and lock washer to ensure a reliable and stable fit, making it suitable for high-performance applications.
Manufacturer: SKF
Type: ADAPTER SLEEVE
Model: HE 322
This SKF adapter sleeve is ideal for bearing mounting on shafts, offering high security and precision. It is designed for reliable performance and ease of installation in a variety of industrial settings.

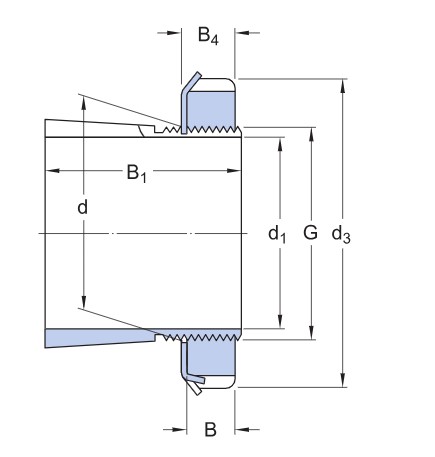

| Bore Diameter (d1) | 101.6 mm |
| Outside Diameter Small Taper (d) | 110 mm |
| Outer Diameter Lock Nut (d3) | 145 mm |
| Width Lock Nut (B) | 19 mm |
| Width (B1) | 77 mm |
| Width Lock Nut Including Lock Washer | 21 mm |
| Thread (G) | M110x2 |
| External Taper | 1:12 |
| Lock Nut | KM 22 |
| Lock Washer | MB 22 |
