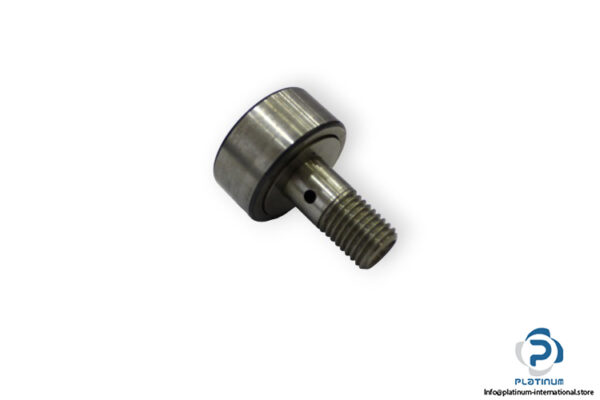

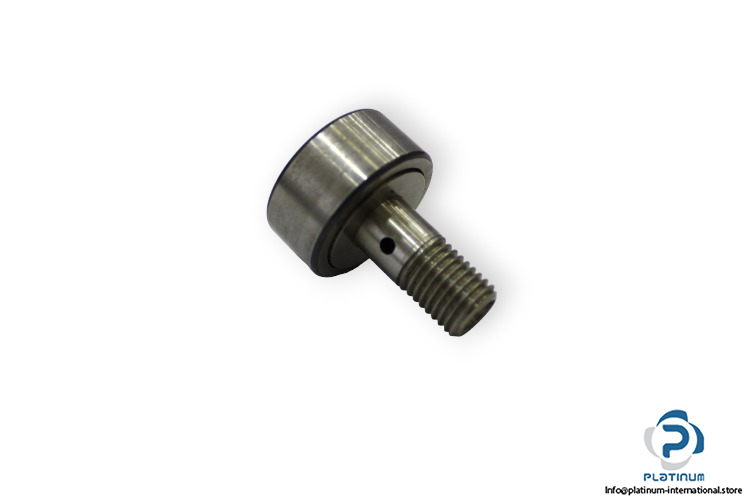

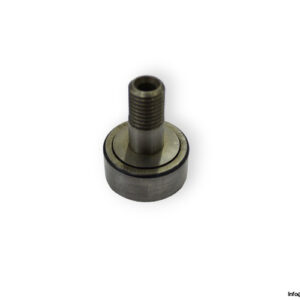

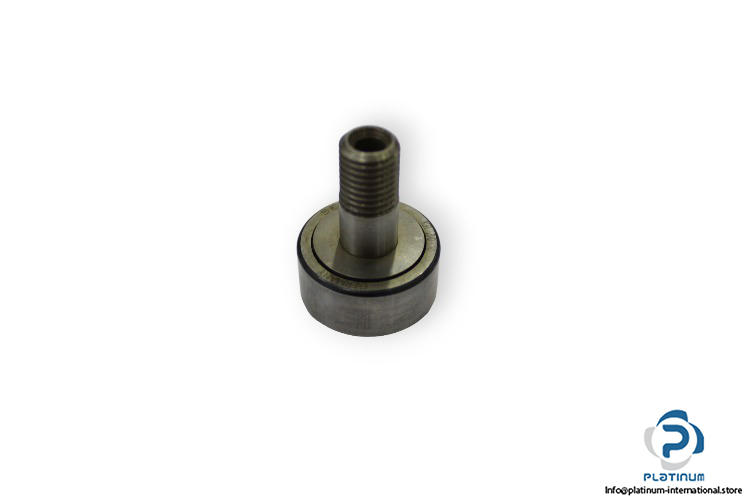

Manufacturer: SKF
Type: Cam follower (stud-type track roller) with relubrication feature
Model: KR30 X

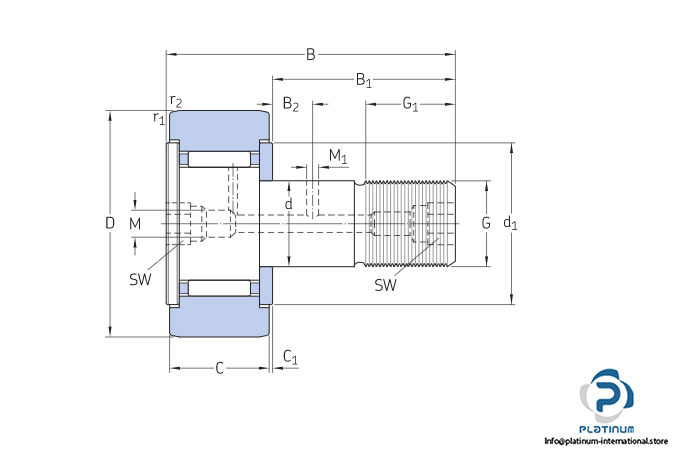

Dimensions
Outside diameter D: 30 mm
Attachment diameter d: 12 mm
Total length B: 40.2 mm
Width outer ring C: 14 mm
Thread stud G: M12x1.5
Basic load ratings:
Dynamic C: 6.16 kN
Static C0: 8 kN
Fatigue load limit Pu: 0.915 kN
Limiting speed: 4500 rpm
