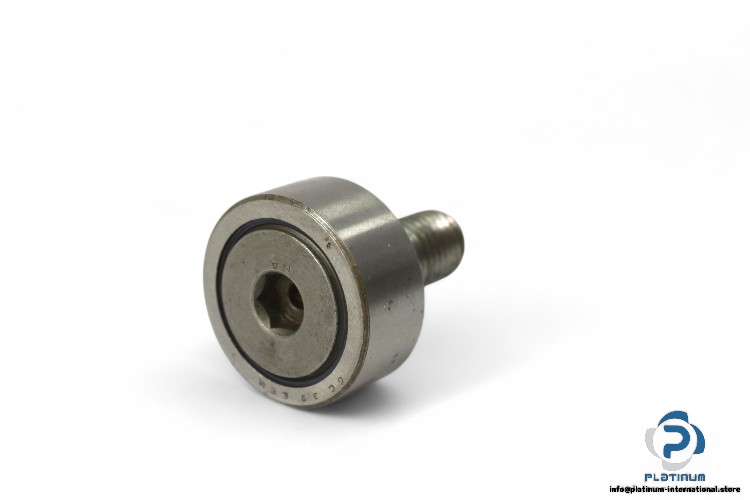

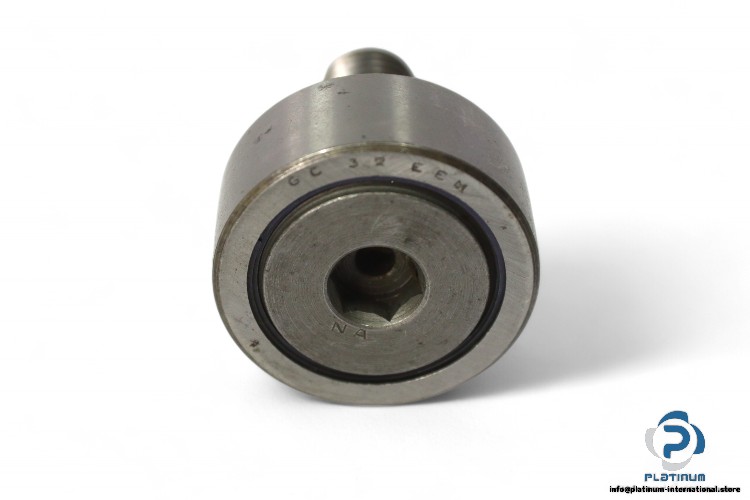

Nadella GC 32 EE Stud Type CAM Follower
New
In stock1 unitReady to ship
77,77$
Type: STUD TYPE CAM FOLLOWER (Concentric) Model: GC 32 EE
Manufacturer:
Nadella
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: Nadella
Type: STUD TYPE CAM FOLLOWER (Concentric)
Model: GC 32 EE
Design: EE, With plastic seals

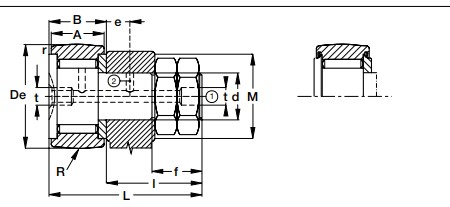

Dimensions
Outside diameter D: 32 mm
Attachment diameter d1: 16 mm
Total length L: 40.7 mm
d: 12 mm
B: 15.2 mm
A: 14 mm
M: 24.8 mm
R: 250 mm
r: 0.6
Limit Loads:
Dyn Fr: 7700 N
Stat For: 14300 N
Speed limit with grease: 4800 rpm
Clamping torque: 26 Nm
