SKF KR 22 PP Stud Type Track Roller

Manufacturer: SKF

Type: Cam follower (stud-type track roller) with integral sealing and relubrication feature

Model: KR22PP

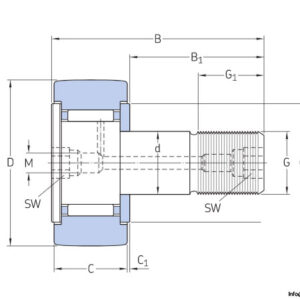

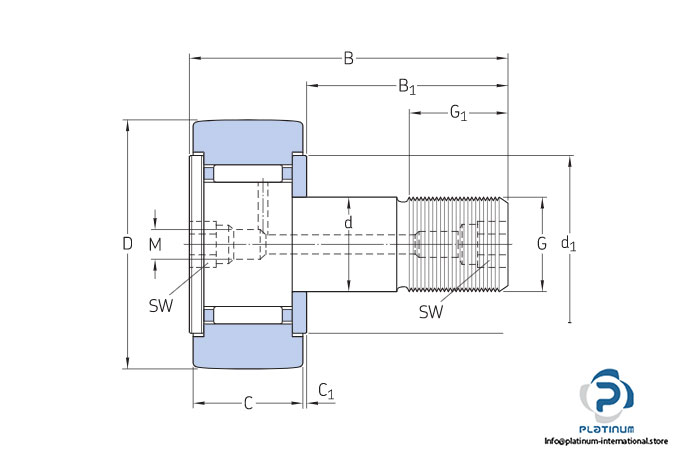

Dimensions

Outside diameter D: 22 mm

Attachment diameter d: 10 mm

Total length B: 36.2 mm

Width outer ring C: 12 mm

Thread stud G: M10x1

Basic load ratings:

Dynamic C: 3.96 kN

Static C₀: 5 kN

Fatigue load limit P_u: 0.56 kN

Limiting speed: 5000 rpm

Sealing: Contact Seal on both sides
