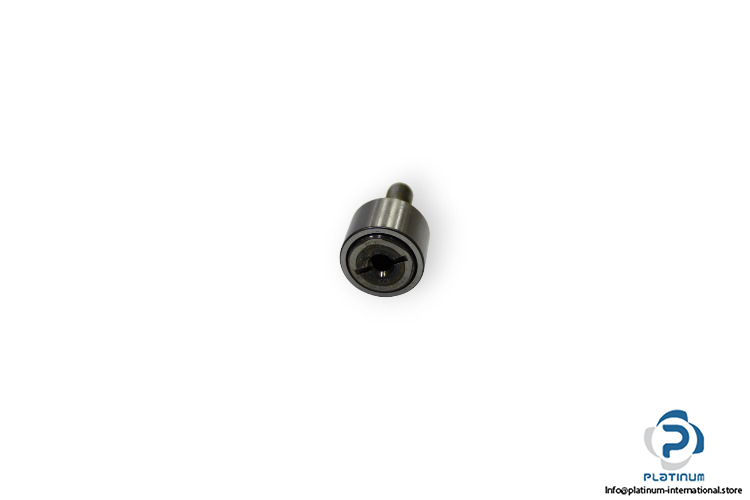

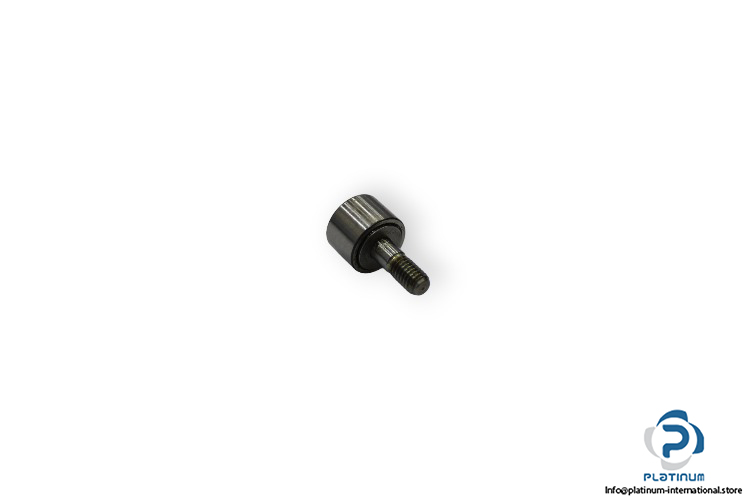

INA KR16 Stud Type Track Roller

Manufacturer: INA
Type: Yoke type track rollers
Model: KR 16

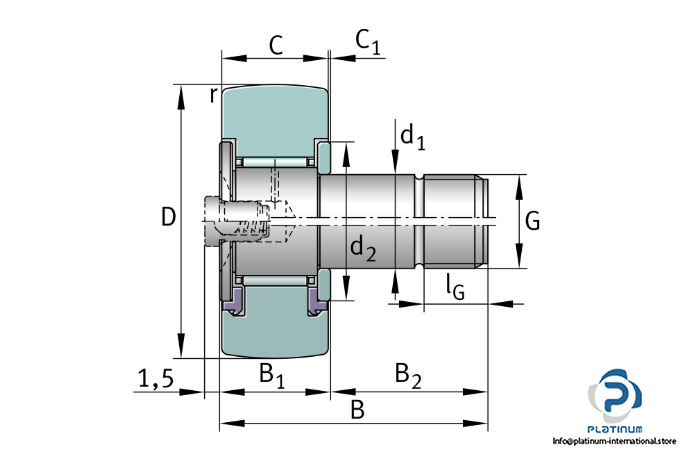

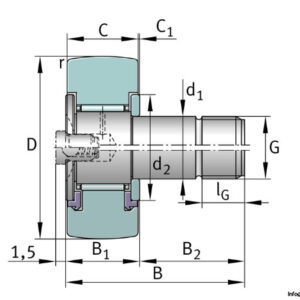

Dimensions:
Outside diameter D: 16 mm
Fit diameter of roller stud d₁: 6 mm
Width of the roller stud B: 28 mm
Roller Width B₁: 12.2 mm
Thread G: M6
Thread length: 8 mm
Basic load ratings, radial:
Dynamic C_{r w}: 3200 N
Static C_{0r w}: 3450 N
Fatigue load limit C_{ur w}: 465 N
Speed on permanent grease lubrication: 14000 rpm
Sealing: Gap seal on both sides
