Mcgill MCF30S Stud Type CAM Follower

Manufacturer: MCGILL CAMROL

Type: Cam follower, stud type, Full complement of needle rollers

Model: MCF-30-S

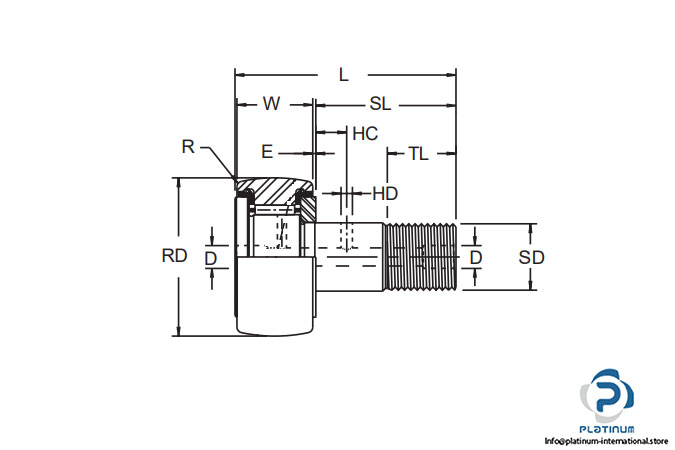

Dimensions

Roller diameter RD: 30 mm

Stud diameter SD: 12 mm

Overall Length L: 40 mm

Roller Width W: 14 mm

Thread stud G: M12x1.5

Basic load ratings:

Dynamic C: 13240 N

Static C₀: 18140 N

Limiting speed Grease: 6400 rpm

Sealing: Seal on both sides
