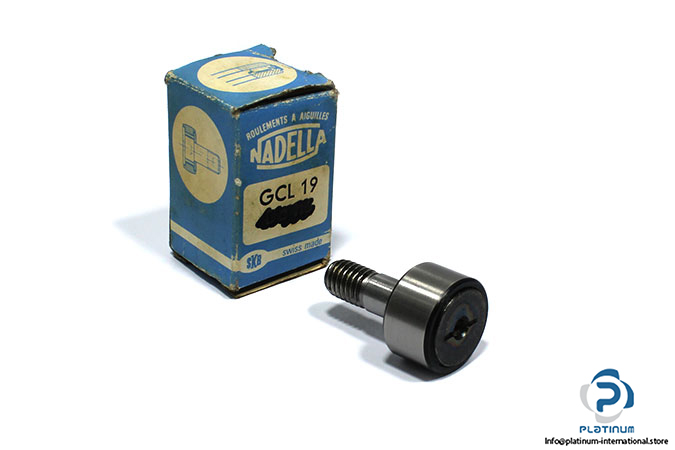

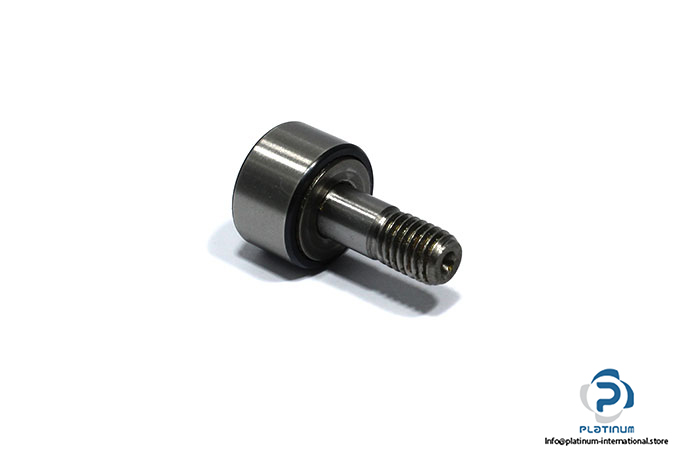

Nadella GCL 19 Stud Type CAM Follower

Manufacturer: NADELLA

Type: Concentric cam followers with cylindrical outer ring without seal

Model: GCL19

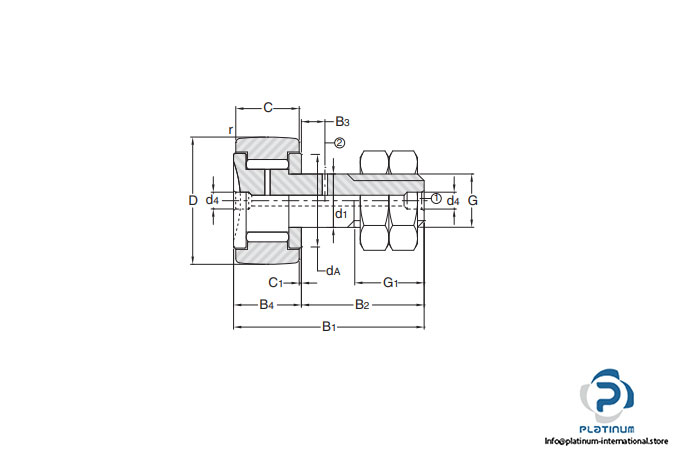

Dimensions

Outside diameter D: 19 mm

Attachment diameter d: 8 mm

Total length B₁: 32.7 mm

Width outer ring C: 11 mm

Thread stud G: M8x1.5

Basic load ratings:

Dynamic F_r: 3 kN

Static F_0r: 6.28 kN

Limiting speed: 4400 rpm
