Manufacturer: SKF ‎

Type: Support Rollers

Model: NUTR50

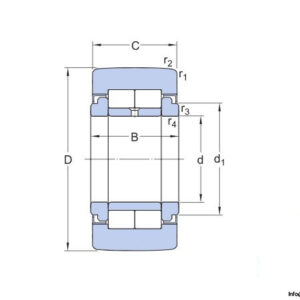

Dimensions:

Bore Diameter d: 50 mm

Outer diameter D: 90 mm

Width outer ring C: 30 mm

Width inner ring B: 32 mm

Basic load ratings:

Dynamic C: 58.3 kN

Static C₀: 78 kN

Fatigue load limit P_u: 9.65 kN

Maximum dynamic radial loads F_r: 32.5 kN

Maximum static radial loads F_0R: 47.5 kN

Limiting speed: 1600 rpm

Weight: 0.98 Kg
