Manufacturer: SKF
Type: Angular Contact Ball Bearing, Four-point contact ball bearing with locating slots
Model: QJ222 N2MA

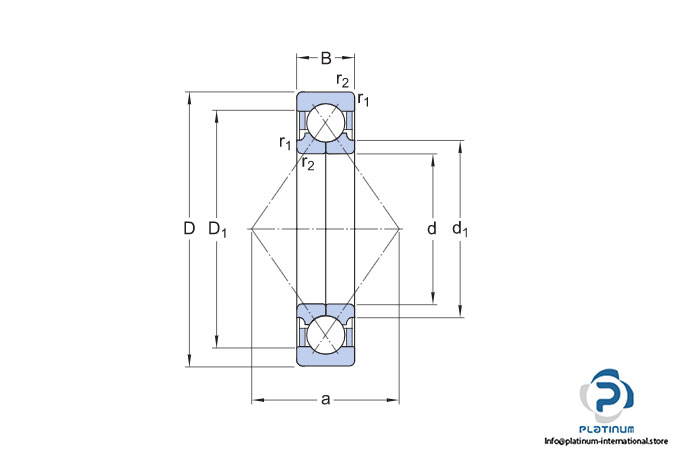

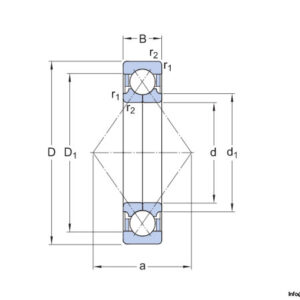

Dimensions
Bore Diameter d: 110 mm
Outer diameter D: 200 mm
Width B: 38 mm
Contact angle: 35 °
Basic load ratings:
Dynamic C: 280 kN
Static C0: 325 kN
Fatigue load limit Pu: 11.2 kN
Limiting speed: 5600 r/min
Locating feature, bearing outer ring: N2, Two locating slots
Cage: MA, Machined brass cage, outer ring centred
