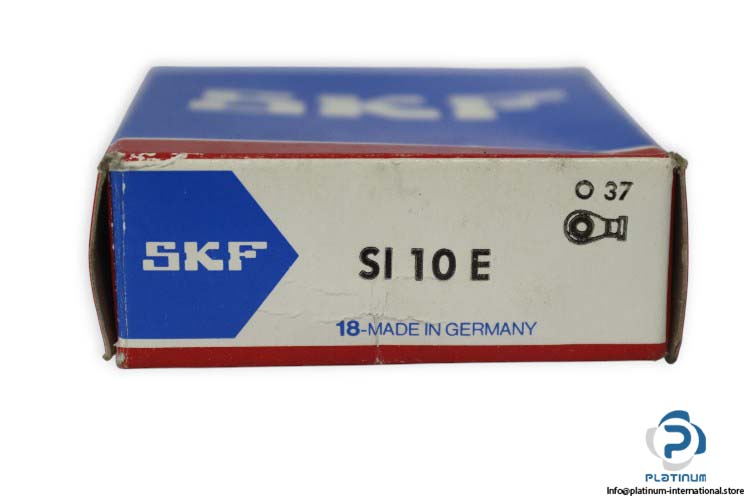

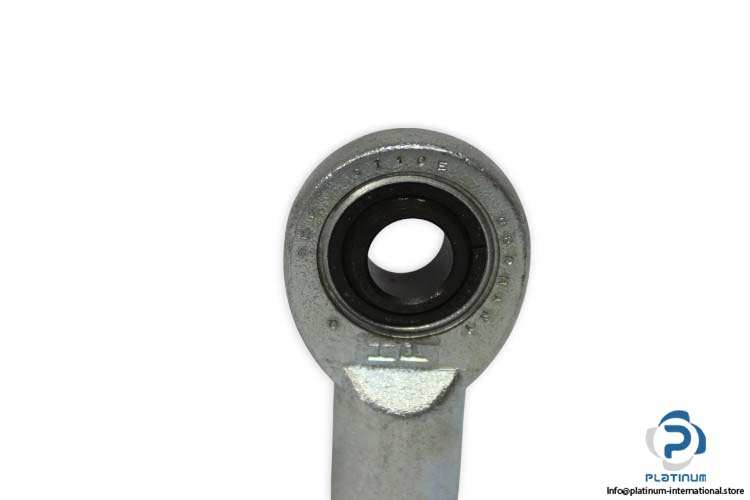

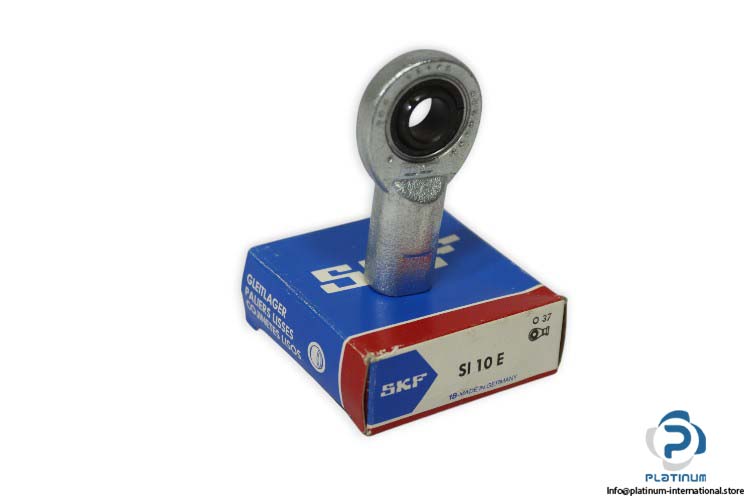

SKF SI10E ROD END

The SKF SI10E Rod End is a durable and high-precision mechanical joint designed for applications requiring smooth angular motion and reliable load-bearing capacity. Featuring a steel/steel sliding contact surface and right-hand female thread, it ensures long-lasting performance in industrial environments.

Manufacturer: SKF
Type: Rod End
Model: SI10E

Technical Information

• Bore Diameter (d): 10 mm
• Outer Diameter (D): 30 mm
• Width (B): 9 mm
• Thread Designation: M 10
• Width, Housing Eye: 7.5 mm
• Centre Height, Housing: 43 mm
• Housing Length, Total: 60 mm
• Sliding Contact Surface: Steel/Steel, Standard
• Attachment Feature, Shank: Right-hand Female Thread
• Basic Dynamic Load Rating: 8.15 kN
• Basic Static Load Rating: 19 kN
