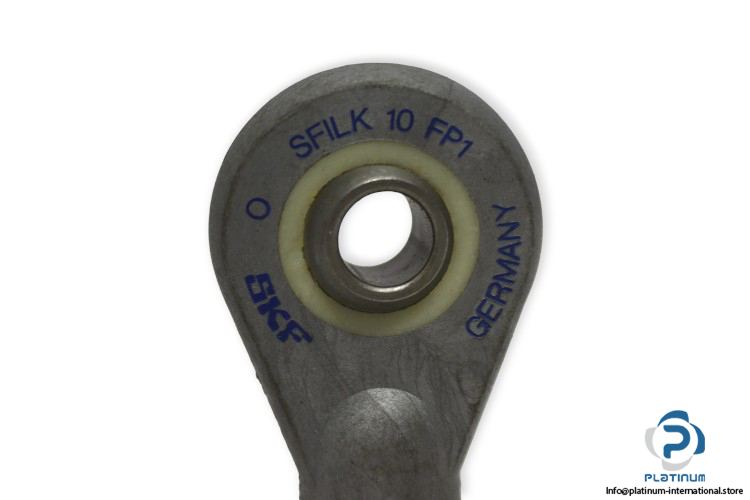

SKF Sfilk 10 FP1 ROD END

Manufacturer: SKF
Type: Rod End
Model: SFILK 10 FP1

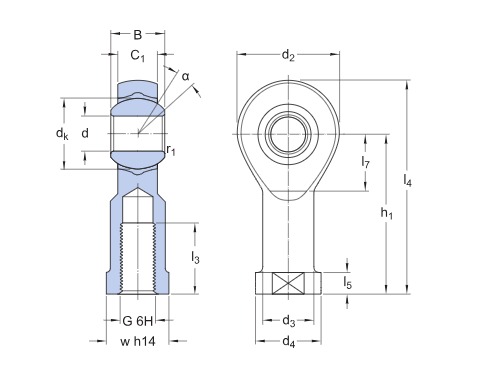

Dimensions
Bore Diameter d: 10 mm
Outer diameter d2: 36 mm
Width B: 14 mm
Length (height) housing l4: 61 mm
Width head C1: 10.5 mm
Diameter shank d4: 21 mm
Sliding contact surface combination: Steel/PTFE
Attachment feature, rod end shank: Left-hand female thread
Material, Inner ring: Bearing steel
