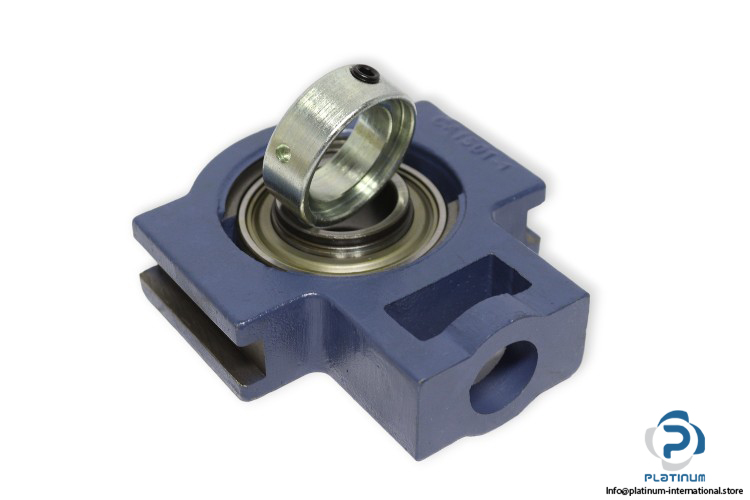

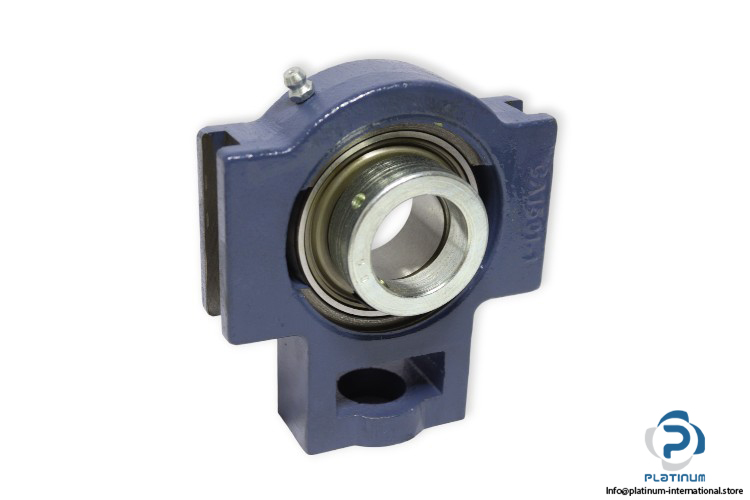

Manufacturer: SKF
Type: Take-up cast iron unit with insert ball bearing, eccentric locking collar and narrow inner ring, ISO
Model: TU 30 FM
Housing No.: TU506M

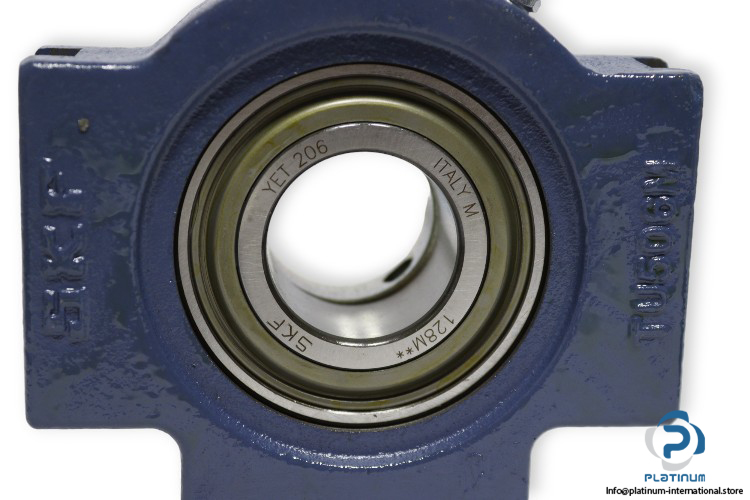

Bearing No.: YET 206

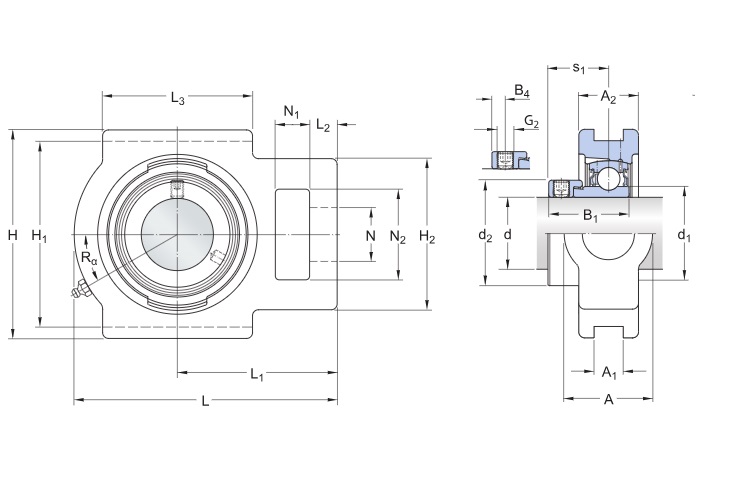

Bore diameter d: 30 mm
Overall width A: 37 mm
Width of piloting groove A1: 13.5 mm
Overall height H: 104 mm
Height of attachment end H2: 56 mm
Overall length L: 114 mm
Diameter of attachment bolt hole N: 22 mm
Basic dynamic load rating C: 19.5 kN
Basic static load rating C0: 11.2 kN
Fatigue load limit Pu: 0.475 kN
Limiting speed: 6300 r/min
Housing type: Take-up
locking Device: eccentric locking collar
Material, housing: Cast iron
Sealing, bearing: Seal on both sides
