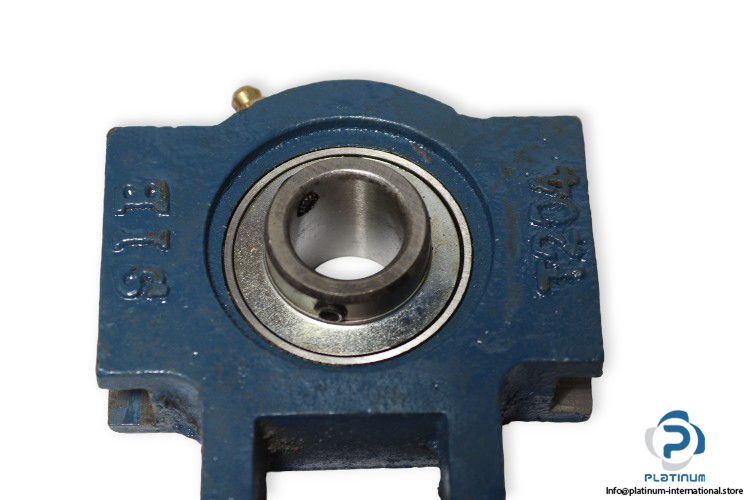

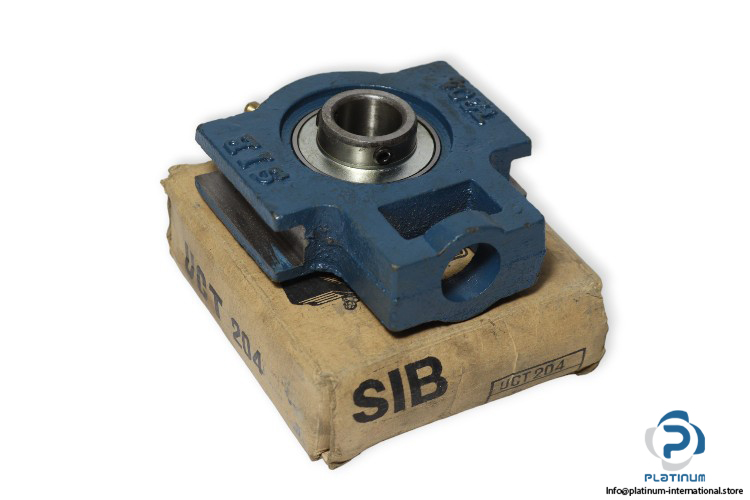

SIB UCT 204 Take UP Ball Bearing Unit
New
Manufacture: SIB
Type: take up ball bearing unit
Model: UCT 204
Housing No.: T204
Bearing No.: UC204
Shaft diameter: 20 mm
Overall width: 32 mm
Width of inner ring: 31.4 mm
Width of piloting groove: 12 mm
Overall height: 89 mm
Height of attachment end: 51 mm
Overall length: 94 mm
Diameter of attachment bolt hole: 19 mm
Length of attachment slot: 16 mm
Height of attachment slot: 32 mm
Length of piloting groove: 51 mm
Housing type: Take-up
