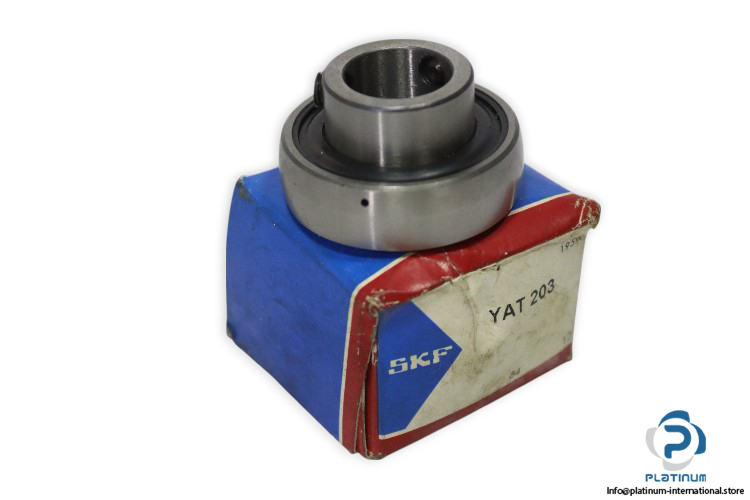

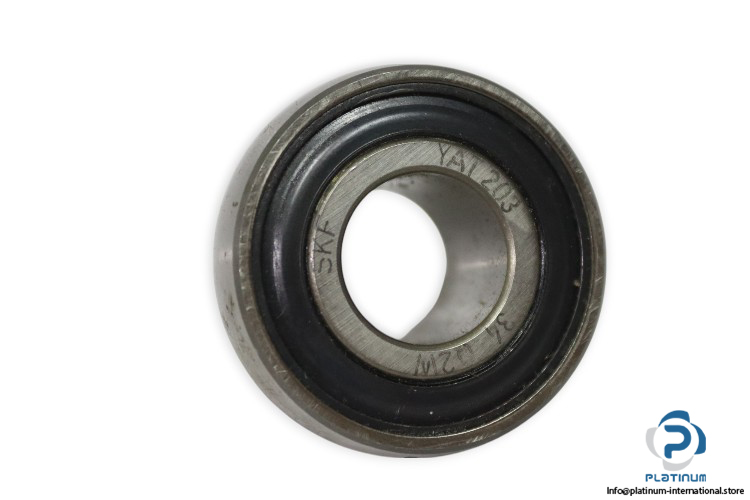

SKF YAT 203 INSERT BALL BEARING
The SKF YAT 203 Insert Ball Bearing is designed for durability, smooth operation, and reliable load handling in a wide range of industrial applications. Featuring a spherical outer ring, cylindrical bore, and set screw retaining feature, this bearing ensures secure mounting and long-lasting performance.
Manufacturer: SKF
Type: Insert Ball Bearing
Model: YAT 203
Technical Information
- Bore Diameter (d): 17 mm
- Outer Diameter (D): 40 mm
- Width of Inner Ring (B): 22.1 mm
- Width of Outer Ring (C): 12 mm
- Overall Bearing Width (B1): 22.1 mm
- Dynamic Load Rating (C): 9.56 kN
- Static Load Rating (C0): 4.75 kN
- Fatigue Load Rating: 0.2 kN
- Limiting Speed: 9 500 r/min
- Inner Ring Extension: On one side
- Outer Ring Type: Spherical
- Retaining Feature, Inner Ring: Set screws
- Sealing: Seal on both sides
- Bore Type: Cylindrical
