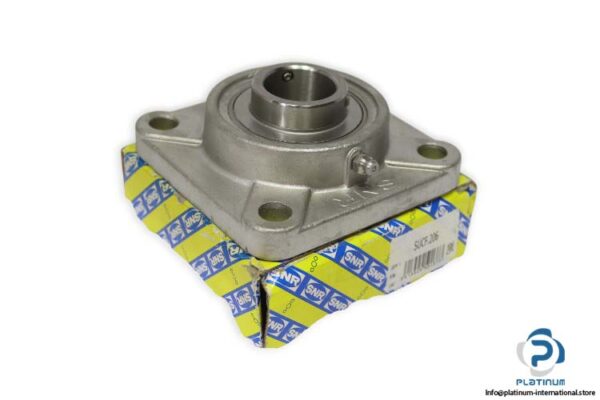

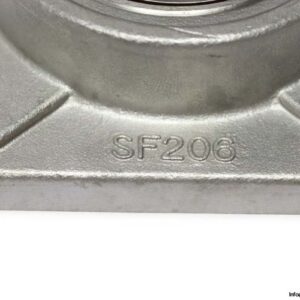

SNR / NTN SUCF206 Square Flange Housing Unit

The SNR / NTN SUCF206 is a durable square flange housing unit designed for reliable shaft support and smooth bearing operation in industrial machinery and automation systems.

Manufacturer: SNR / NTN
Type: Square Flange Housing Unit

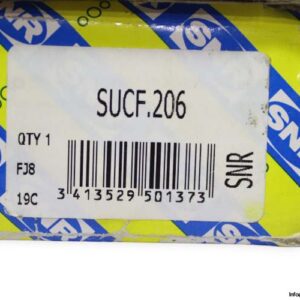

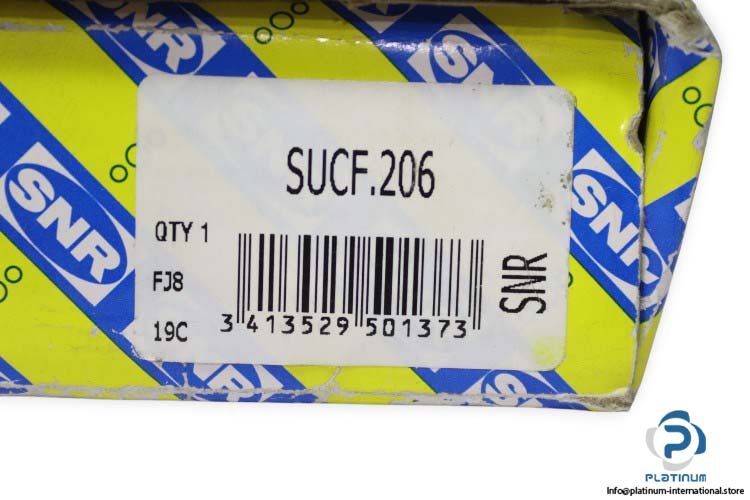

Model: SUCF206

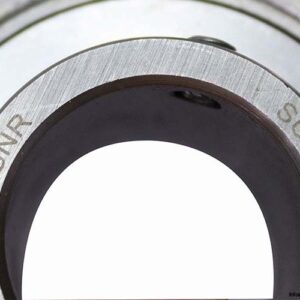

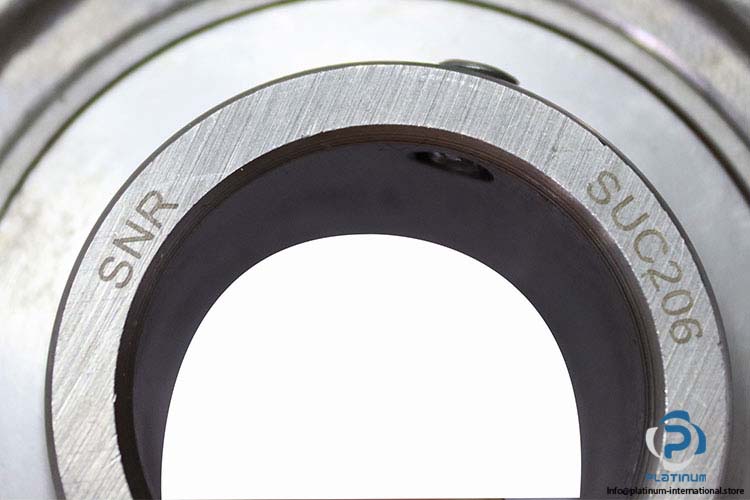

Bearing No.: SUC206

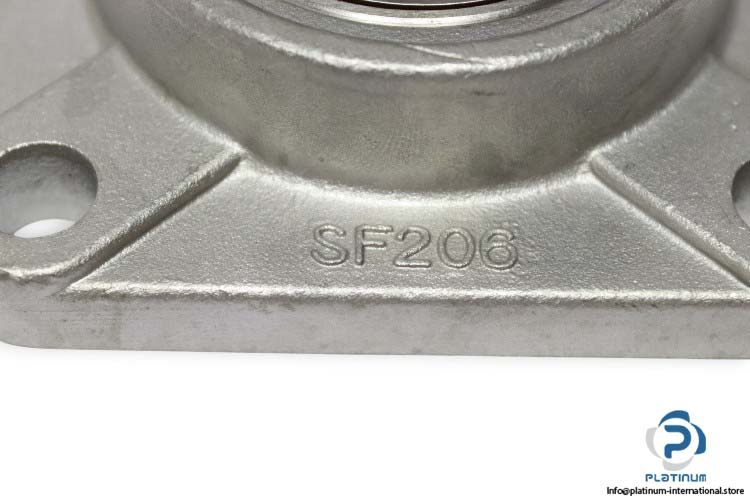

Housing Unit: SF206

Technical Information

• Housing height (A): 30.5 mm
• Housing foot / flange height (A1): 14 mm
• Total height from mounting surface (A2): 40.2 mm
• Width of Inner Ring (B): 38.1 mm
• Shaft Diameter (d): 30 mm
• Distance mounting surface to bearing center (e): 18 mm

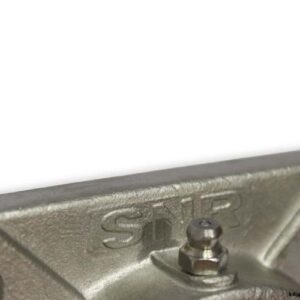

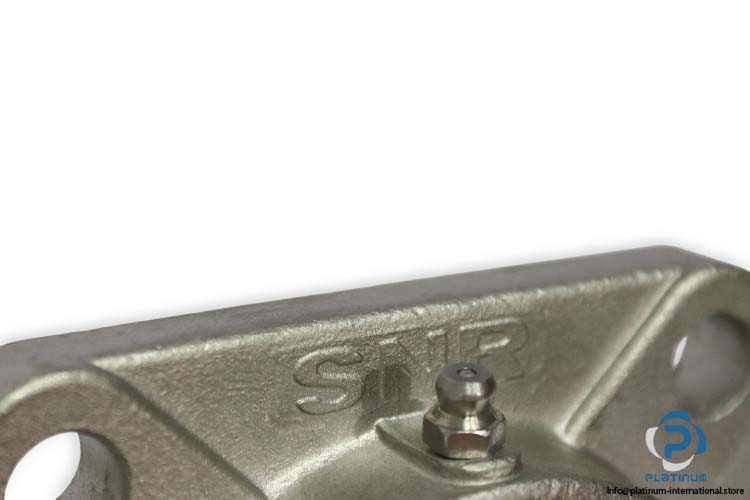

• Grease Fitting (G): M6x1
• Mounting Holes Distance (J): 83 mm
• Housing Width / Diameter (L): 108 mm
• Mounting Hole Dimension (N): 12 mm
• Distance front side / bearing center (S): 15.9 mm
• Dynamic Load Rating (C): 19.4 kN
• Static Load Rating (C0): 11.2 kN
• Operating Temperature: -20 to 100°C
