Translink TRK UCF212 SS Stainless Steel Four-Bolt Square Flange Unit

Name: TRANSLINK TRK UCF212 SS STAINLESS STEEL FOUR-BOLT SQUARE FLANGE UNIT
SKU: 1030058
Availability: LimitedAvailability

translink-TRK-UCF212-SS-stainless-steel-four-bolt-square-flange-unit-(new)-(carton)

translink-TRK-UCF212-SS-stainless-steel-four-bolt-square-flange-unit-(new)-(carton)-1

translink-TRK-UCF212-SS-stainless-steel-four-bolt-square-flange-unit-(new)-(carton)-2

translink-TRK-UCF212-SS-stainless-steel-four-bolt-square-flange-unit-(new)-(carton)-3

New

In stock11 unitsReady to ship

Manufacturer: TRANSLINK Type: Stainless Steel Four-Bolt Square Flange Unit Model: SSUCSF 212

Manufacturer

TRANSLINK

SKU

1030058

Category

Plummer Block Housing Units

Condition

New

bearing Block Four-Bolt SSUCF212 stainless Steel Translink Unit

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: TRANSLINK
Type: Stainless Steel Four-Bolt Square Flange Unit
Model: SSUCSF 212

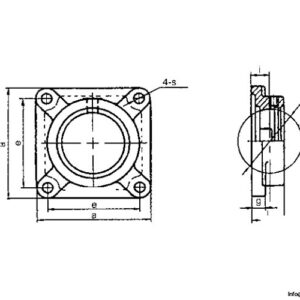

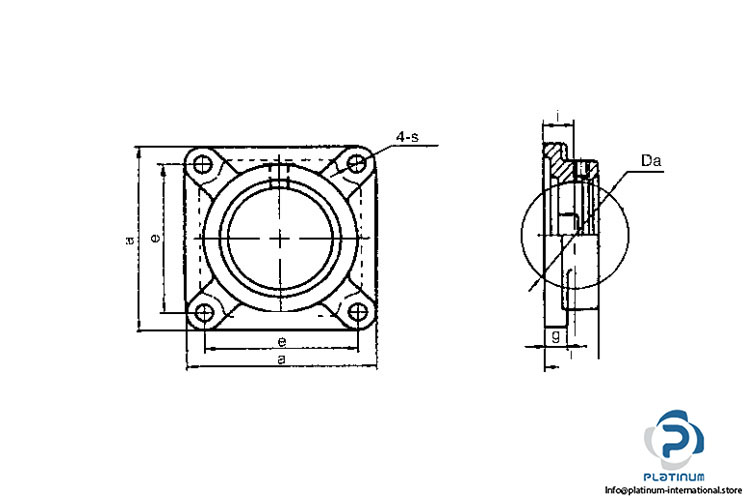

Dimensions
Shaft diameter d: 60 mm
Da: 110 mm
Overall length a: 175 mm
i: 29 mm
Housing foot height / flange height g: 20 mm
Overall Width I: 48 mm
Distance Between Attachment Bolts e: 143 mm
Mounting hole length s: 19 mm
Mounting: Four-Bolt Flange
Material, housing: Stainless Steel
Retaining feature, inner ring: Set screws
