TR UCFC205 Round Flange Ball Bearing Unit
Translink UCFC205 Round Flange Ball Bearing Unit, 25 mm bore diameter, cast iron housing, set screw locking, and precise design for industrial applications.
Translink UCFC205 Round Flange Ball Bearing Unit

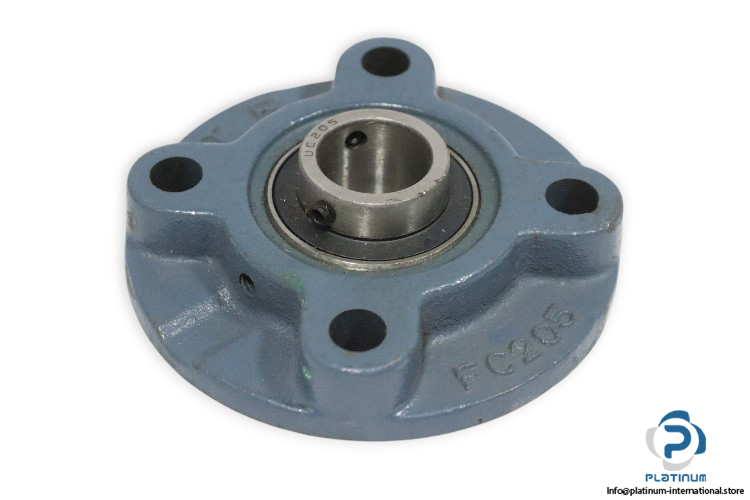

The Translink UCFC205 Round Flange Ball Bearing Unit combines durability and precision, offering reliable performance for various industrial applications. Featuring a bore diameter of 25 mm, this unit is built with a UC205 bearing in a cast iron housing (model FC205), ensuring long-term stability and resistance to wear.
🔧 Technical Specifications:
- Manufacturer: Translink
- Type: Round Flange Ball Bearing Unit
- Model: UCFC205
- Bearing Number: UC205
- Housing Number: FC205

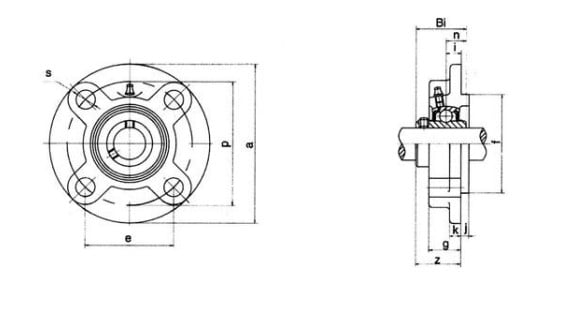

📠Dimensions:
- Bore Diameter (d): 25 mm
- Outside Diameter (a): 115 mm
- Distance Between Attachment Bolts (e): 63.6 mm
- Pitch Diameter of Attachment Bolts (p): 90 mm
- Length of Attachment Bolt Hole (S): 12 mm
- Bi: 34.1 mm
- Z: 29.8 mm
ðŸ› ï¸ Features:
- Locking Device: Set Screw
- Material, Housing: Cast Iron
The UCFC205 unit is designed for ease of installation and maintenance, offering enhanced operational efficiency in industrial environments. With its rugged cast iron housing and reliable set screw locking mechanism, this unit is an excellent choice for applications requiring robust and precise bearing performance.
