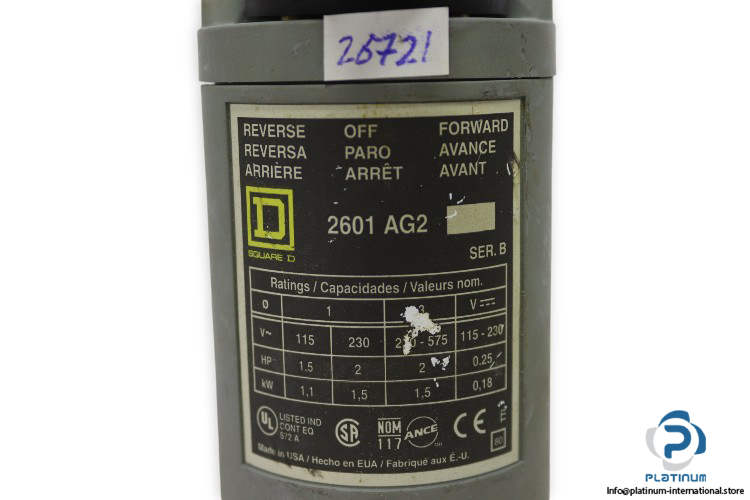

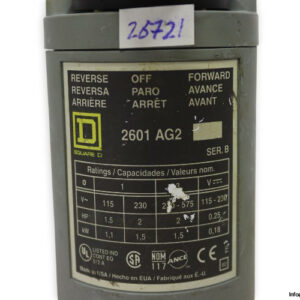

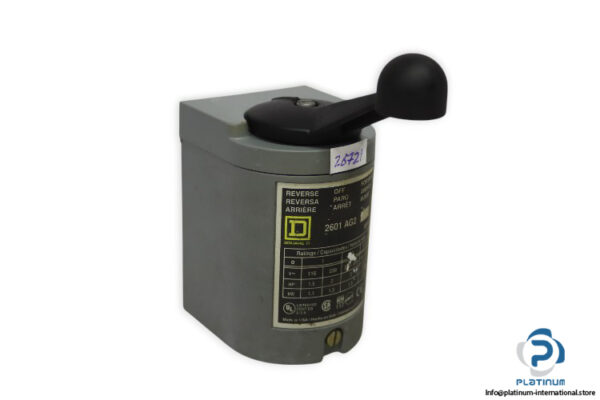

SQUARE D 2601 AG2 DRUM SWITCH

Engineered for reliable control of electric motors in industrial applications, the Square D 2601 AG2 drum switch delivers robust performance across both AC and DC systems. Ideal for reversing, starting, or stopping operations, this switch is built to handle demanding environments with ease.

Manufacturer: SQUARE D
Type: Drum Switch
Model: 2601 AG2

Technical Information

• System Voltage: 250 V DC / 600 V AC
• Number of Poles: 3P
• Electrical Connection: Screw-clamp terminals
• Horsepower Ratings:
  • 2 hp “ 230 V AC
  • 1.5 hp “ 115 V AC
  • 2 hp “ 200 V AC
  • 2 hp “ 460 V AC
  • 2 hp “ 575 V AC
  • 0.25 hp “ 115 V DC
  • 0.25 hp “ 230 V DC
