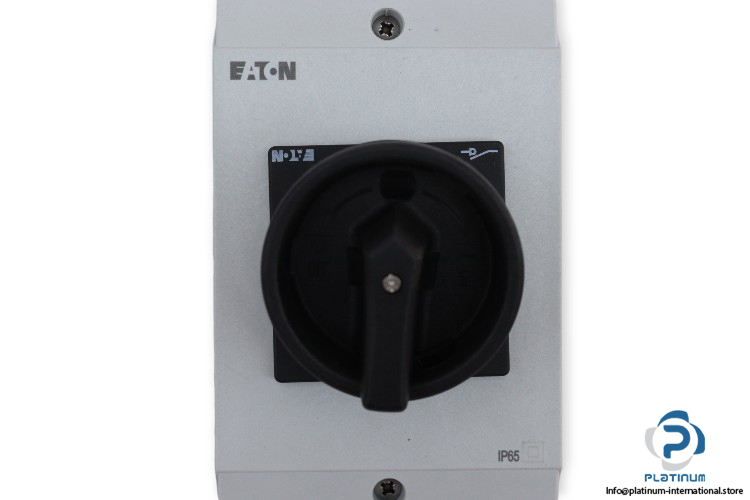

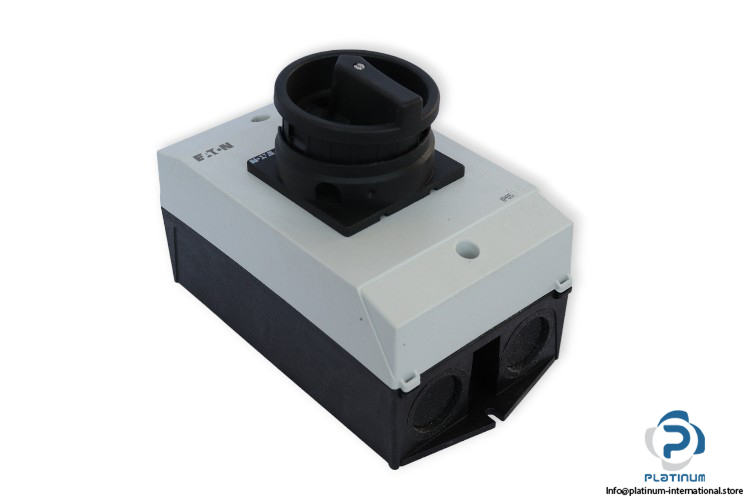

Eaton P1-25/I2/SVB-SW Main Switch

Manufacturer: EATON
Type: Main Switch
Model: P125I2SVBSW

Fitted with: Black Rotary Handle and Locking Ring
Function: Interlockable STOP function
Rated Operational Voltage: 690 V AC
Rated Current: 25 A
Frequency: 50 … 60 Hz
Rated Operational Power: 7.5 W
Rated Impulse Voltage (Uimp): 6 kV
Number of Poles: 3
Locking facility: Lockable In the 0 (OFF) Position
Switching Angle: 90 °
Protection Class: IP65
Temperature: -25 … 40 °C
Dimensions: 180 x 115 x 100 mm
