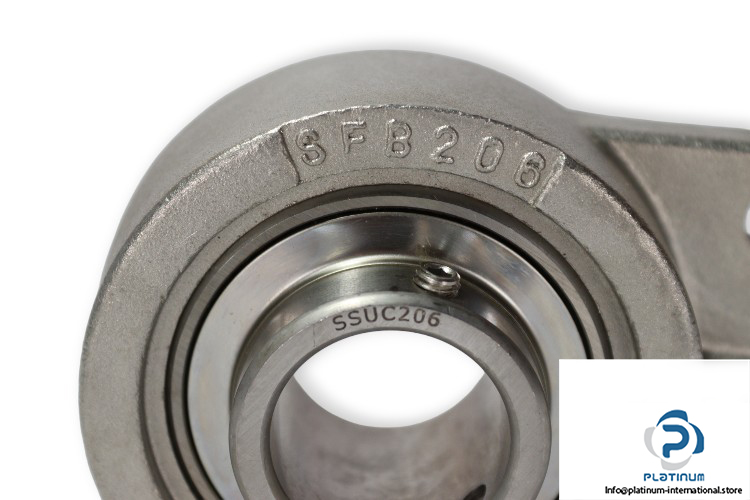

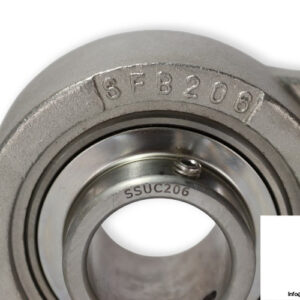

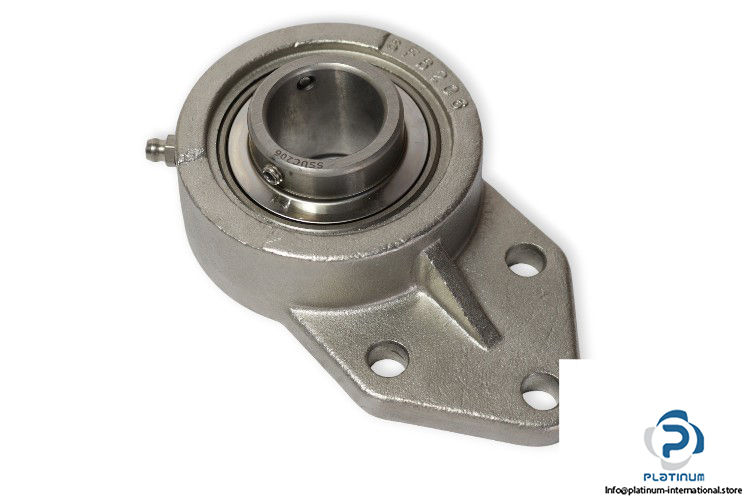

Type: Stainless Steel 3-Bolt Bracket Unit
Model: SSUCSFB 206
Housing No.: SFB206
Bearing No.: SSUC206

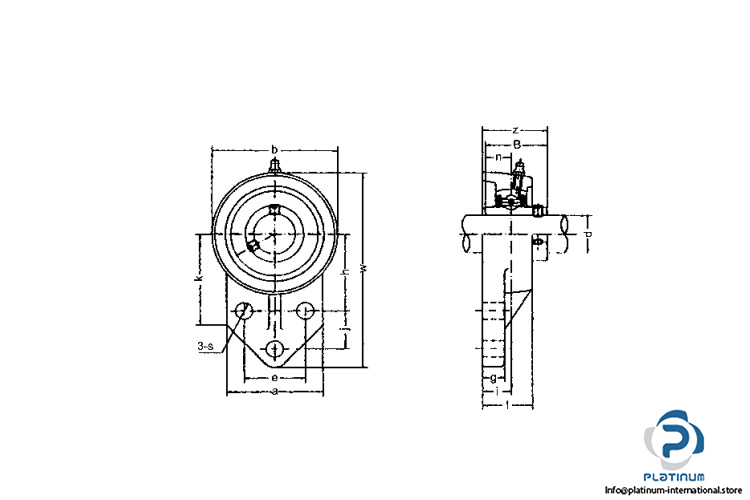

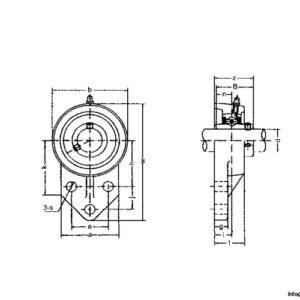

Dimensions
Bore Diameter d: 30 mm
Overall length b: 78 mm
Overall height w: 130 mm
Overall Width z: 40.2 mm
Distance Between Attachment Bolts e: 40 mm
Diameter of attachment bolt hole s: 10 mm
Mounting type: Three-Bolt Flange
Material, housing: Stainless Steel
Retaining feature, inner ring: Set screws
