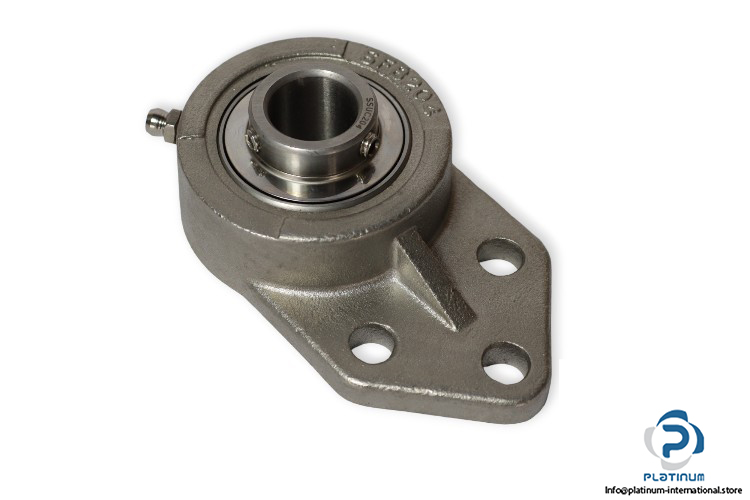

SUCSFB204 Stainless Steel Three-Bolt Flange Bracket Unit
New
In stock18 unitsReady to ship
Type: Stainless Steel 3-Bolt Bracket Unit Model: SUCSFB 204 Housing No.: SFB204 Bearing No.: SSUC204
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Type: Stainless Steel 3-Bolt Bracket Unit
Model: SUCSFB 204
Housing No.: SFB204
Bearing No.: SSUC204

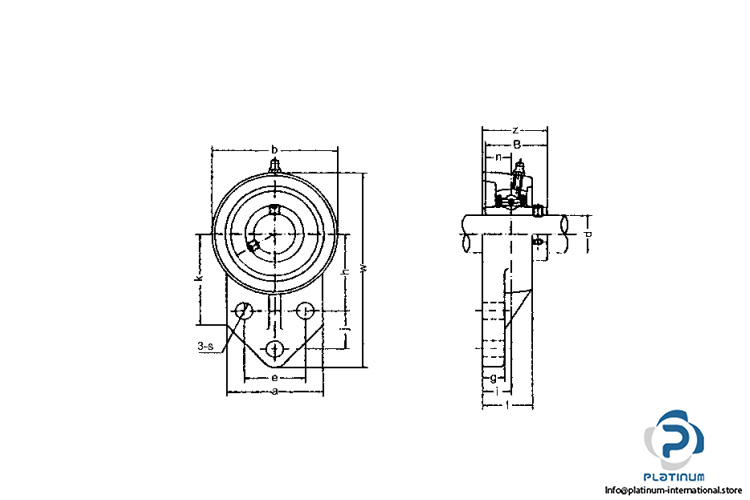

Dimensions
Bore Diameter d: 20 mm
Overall length b: 68 mm
Overall height w: 110 mm
Overall Width z: 33.3 mm
Distance Between Attachment Bolts e: 32 mm
Diameter of attachment bolt hole s: 10 mm
Mounting type: Three-Bolt Flange
Material, housing: Stainless Steel
Retaining feature, inner ring: Set screws
