STAR / REXROTH LINEAR SET WITH SUPER LINEAR BUSHING

The STAR / REXROTH R103681620 linear set with super linear bushing is engineered for high-precision linear motion applications. Its adjustable design and aluminum precision housing ensure durability, accuracy, and efficient load handling in industrial automation environments.

Manufacturer: STAR / REXROTH
Type: Linear Set with Super Linear Bushing
MNR: R103681620

Technical Information

• Size: 16 mm
• Design Type: Adjustable
• Precision Housing: Aluminum
• Breakaway Force: 2 N
• Dynamic Load Capacity (C): 940 N
• Static Load Capacity (C0): 530 N
• Sealing: With Two Seals
• Ambient Temperature: -10 to 80 °C
• Maximum Acceleration Travel (amax): 150 m/s²
• Max. Permissible Speed (vmax): 3 m/s

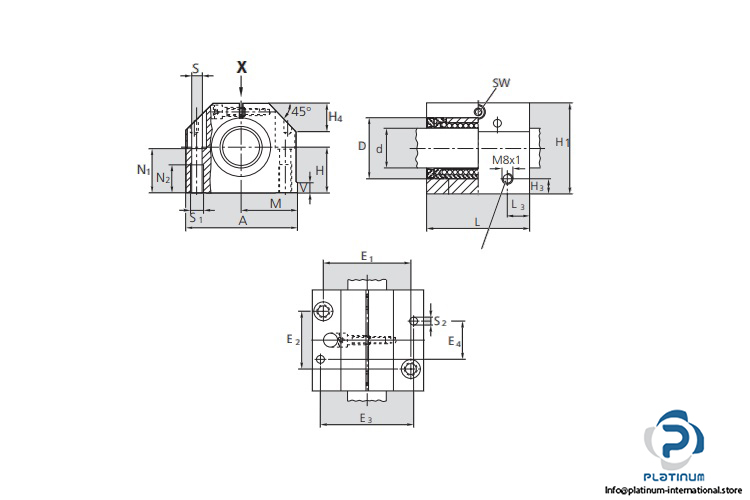

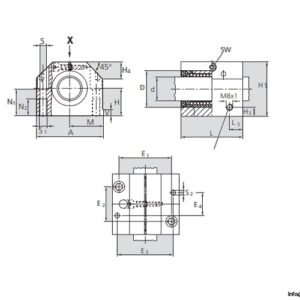

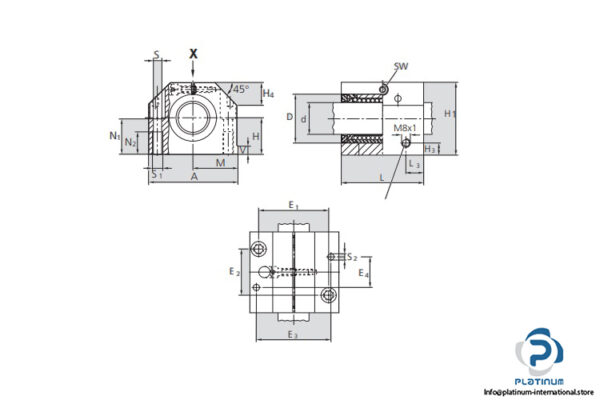

Dimensions

• Width (A): 53 mm
• Size D: 26 mm
• Size E1: 40 mm
• Size E2: 26 mm
• Size E3: 42 mm
• Size A: 53 mm
• Size H1: 42 mm
• Size H3: 10 mm
• Size H4: 13 mm
• Size L: 43 mm
• Size N1: 21 mm
• Size N2: 13 mm
• Size L3: 11.5 mm
• Size SW: 3 mm
• Size S: 5.3 mm
