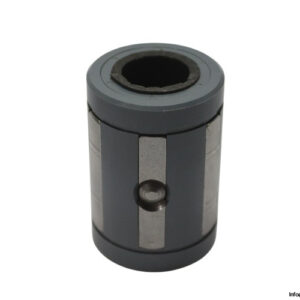

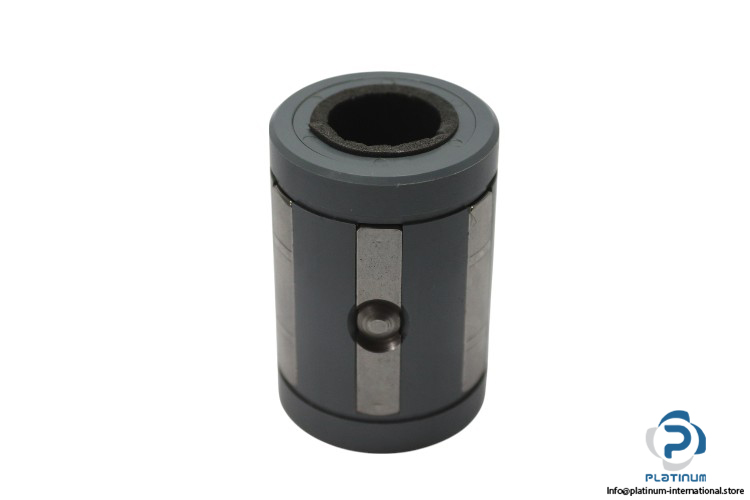

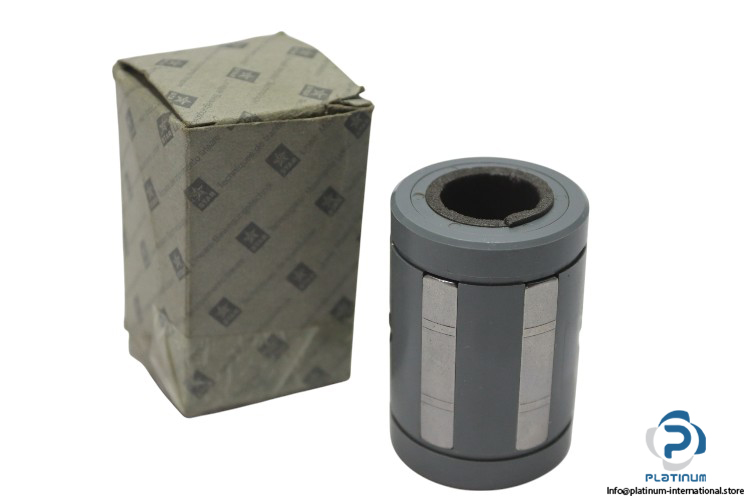

Star Rexroth Torque Resistant Bushing KBDR2-25
The Star Rexroth Torque Resistant Bushing KBDR2-25 is designed for applications requiring high resistance to torque and superior load-bearing performance. With a dynamic load rating of 3030 N and a static load rating of 2180 N, this bushing provides durability and precision.
Manufacturer: Star Rexroth
Type: Torque Resistant Bushing
Model: KBDR2-25
MNR: R069632500
Technical Information:
- Shaft Diameter (d0): 25 mm
- Outer Diameter: 40 mm
- Length of Linear Bushing: 58 mm
- Raceway Grooves: 2
- Dynamic Load Rating: 3030 N
- Static Load Rating: 2180 N
