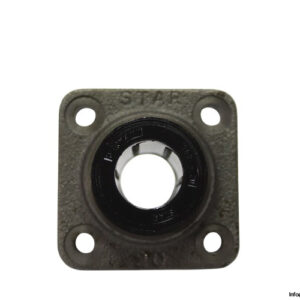

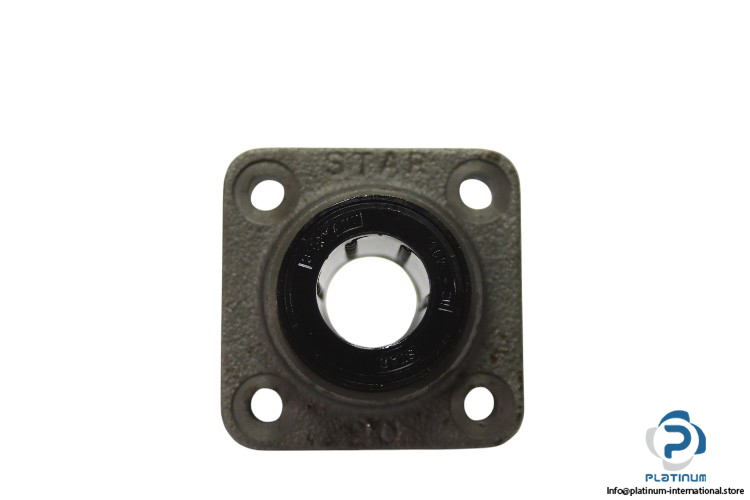

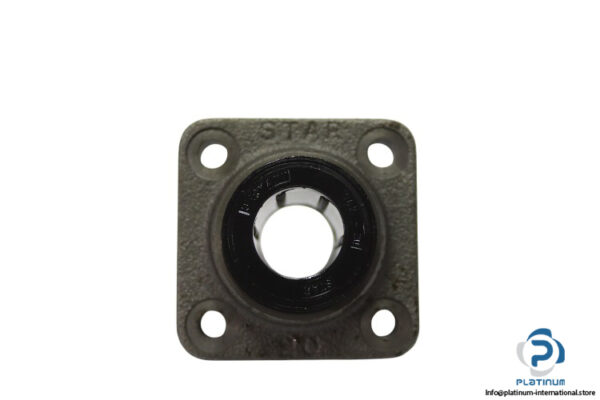

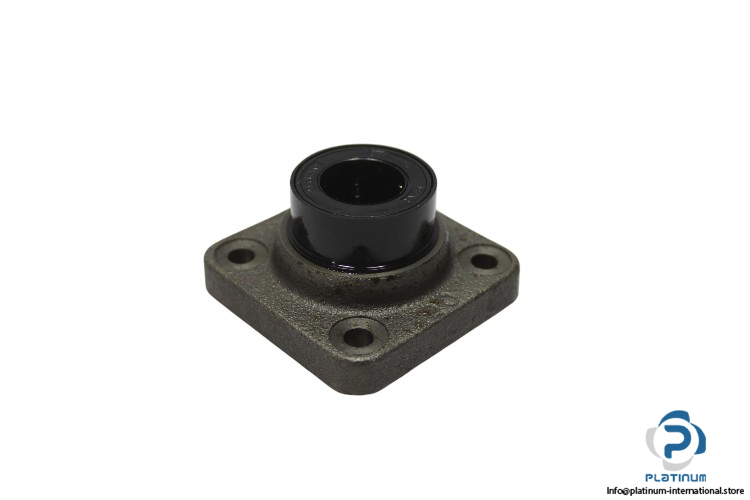

Star Rexroth Linear Set LSGF-A-20-DD
The Star Rexroth Linear Set LSGF-A-20-DD is designed for high-performance linear motion with excellent load capacity and precise self-alignment. Its compact design ensures smooth operation in demanding industrial applications.
Manufacturer: Star Rexroth
Type: Linear Set (LSGF-A-20-DD)
Model Number (MNR): R108162040
Technical Information:

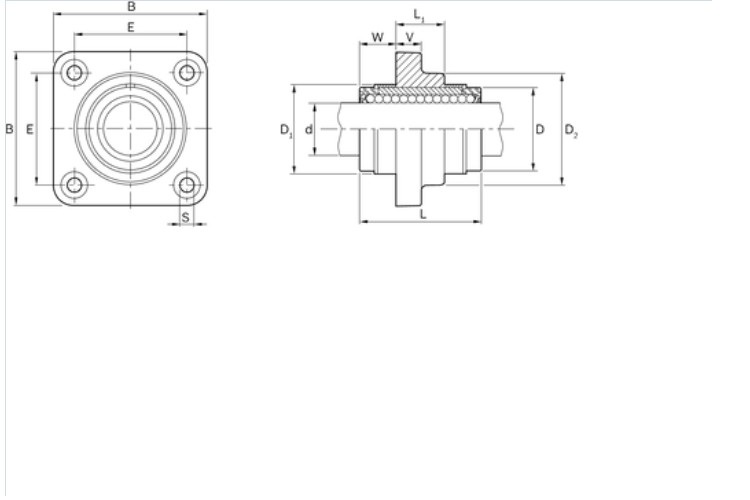

- Shaft Diameter (d0): 20 mm
- Dimension D: 32 mm
- Dimension L: 45 mm
- Dimension B: 60 mm
- Dimension E: 42 mm
- Series: Super A (with self-alignment feature)
- Format of Linear Bushings: F – Flange
- Maximum Permissible Linear Speed (vmax): 3 m/s
- Max. Acceleration (amax): 150 m/s²
- Breakaway Force: 3 N
- Dynamic Load Rating (C): 2020 N
- Static Load Rating (C0): 1050 N
- Seal: With two seals
- Permissible Ambient Temperature: -10 to +80 °C
