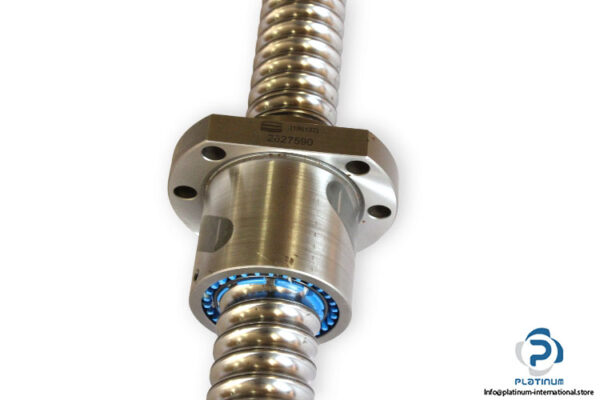

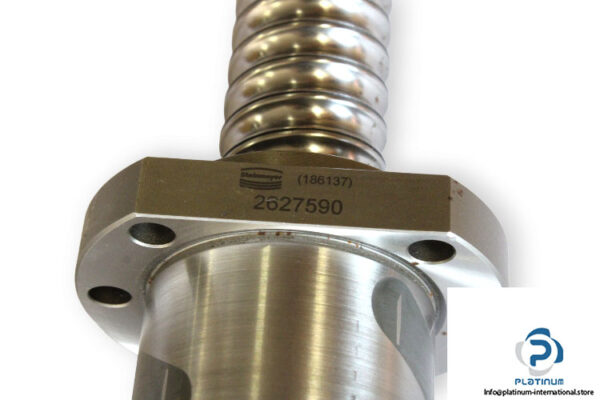

Manufacturer: STEINMEYER
Type: Flange nut ball screw with wipers on both ends
Model: 2627590
Part no.: 186137

Size: 40
Nominal Diameter d_N: 40 mm
Dimensions:
Flange diameter: 93 mm
Nut outer diameter: 62 mm
Nut length: 70 mm
Flange thickness: 14 mm
Cutting flange width: 70 mm
Lead P: 10 mm
Direction of Lead: Right-Hand Thread
Threaded length: 1360 mm
Total screw length: 1480 mm
