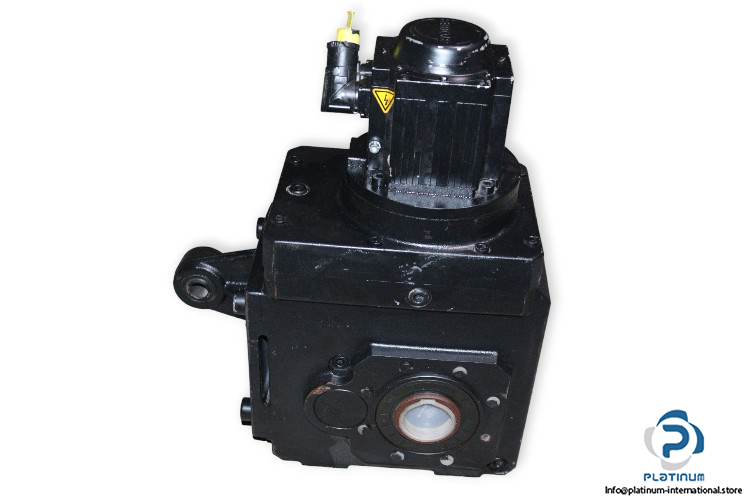

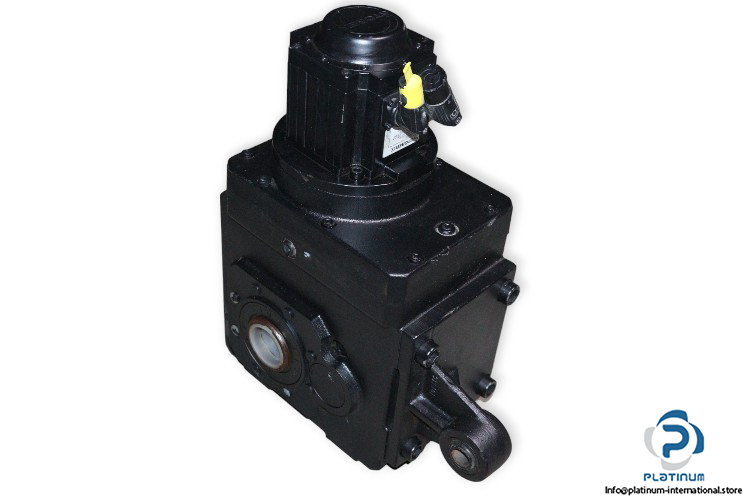

STOBER K514AGD1250EZ501U GEAR SERVO MOTOR

The Stober K514AGD1250EZ501U is a high-performance gear servo motor system combining a precision gear unit and a powerful servomotor. Designed for demanding industrial automation, it ensures reliable, efficient motion control with high torque and speed stability.

Manufacturer: Stober
Type: Gear Servo Motors
Model: K514AGD1250EZ501U
Ref No.: 2248102

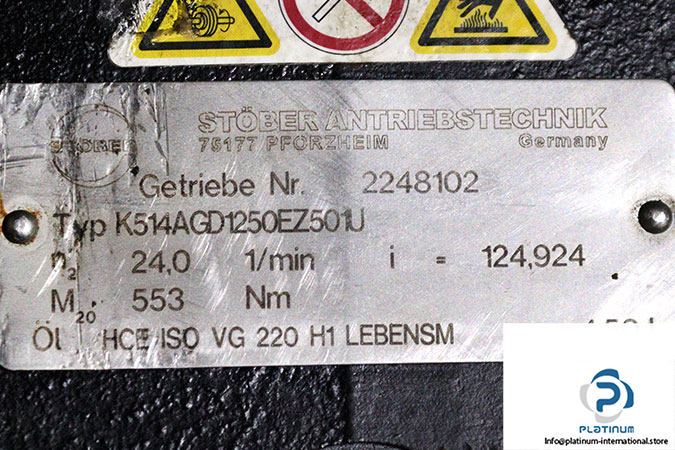

Technical Information “ Gear Unit

• Ratio [i]: 124.924
• Output Speed [rpm]: 24.0
• Rated Torque [Nm]: 553
• Oil: HCE IOS VG 220 H1
• Quantity [L]: 4.5
• Attachment: Stober EZ501UDAAQ5O097 Servomotor

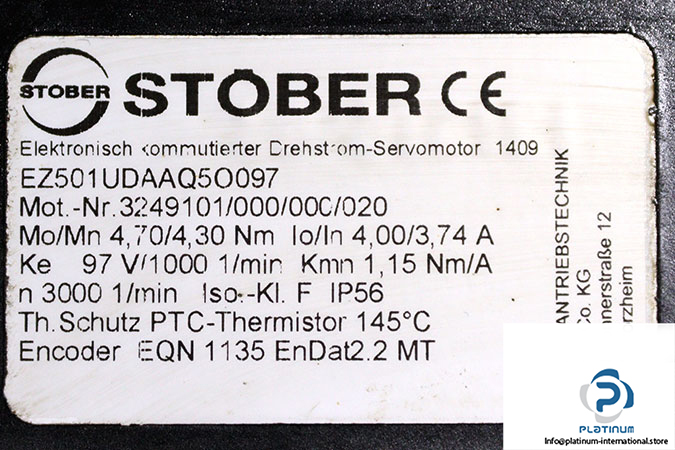

Technical Information “ Servomotor

• Manufacturer: Stober
• Type: Servomotors
• Model: EZ501UDAAQ5O097
• Mot No.: 3249101/000/000/020
• Encoder: EQN1135EnDat2.2 MT
• Stall Torque [Nm]: 4.7
• Rated Torque [Nm]: 4.3
• Rated Current [A]: 3.74
• Stall Current [A]: 4.0
• Rated Speed [rpm]: 3000
• Constant Voltage [V/1000min-1]: 97
• Constant Torque [Nm]: 1.15
• Protection Class [IP]: 56
• Insulation Class: F
