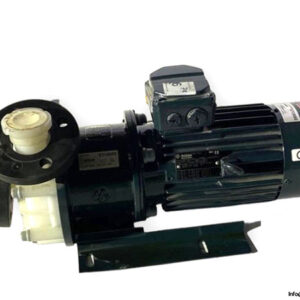

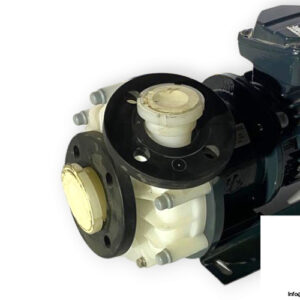

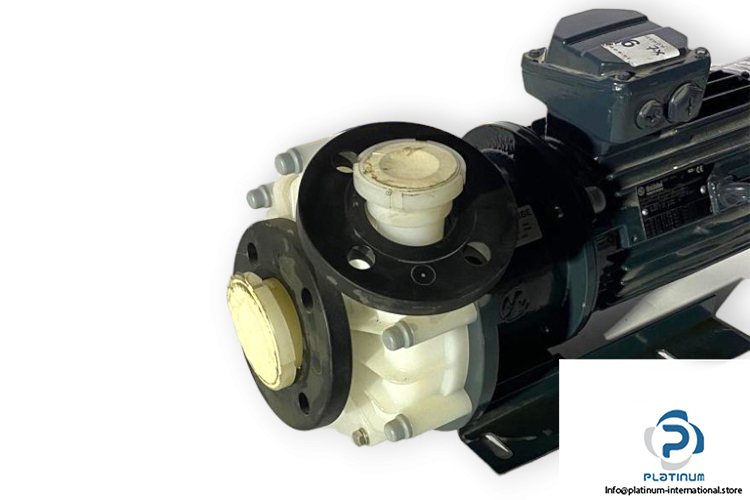

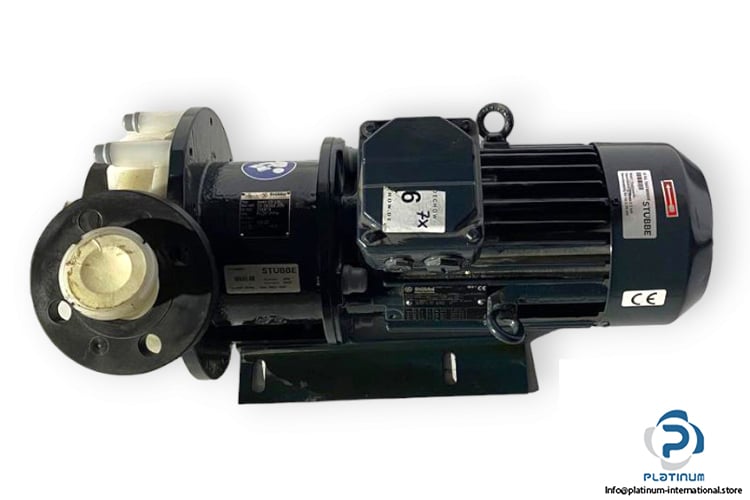

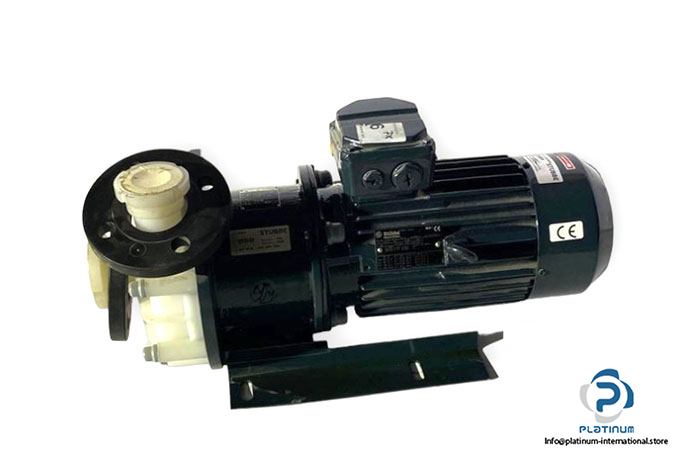

Stübbe SHM-50-40L Magnetic Coupled Centrifugal Pump

The Stübbe SHM-50-40L is a high-performance magnetic coupled centrifugal pump designed for handling aggressive and corrosive fluids. Built with a robust PVDF-FPM material combination, it ensures excellent chemical resistance and long operational life. Ideal for chemical processing, water treatment, and industrial fluid transfer applications requiring leak-free and reliable operation.

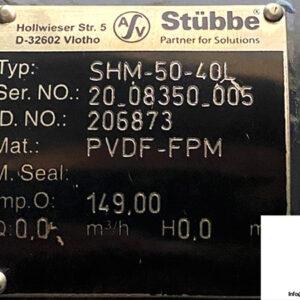

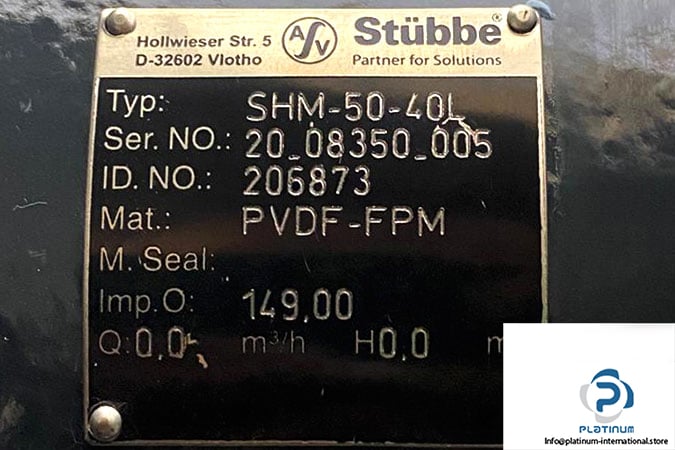

Manufacturer: Stübbe
Type: Magnetic Coupled Centrifugal Pump
Model: SHM-50-40L
ID. No.: 206873
M. No.: PVDF-FPM
Part No.: 20-08350-005

Technical Information

Flow Rate: up to 65 m³/h
Max. Operating Temperature: 110 °C
Fluid Viscosity Max.: 160 mPas (cP)
Fluid Density: 1.9 kg/dm³

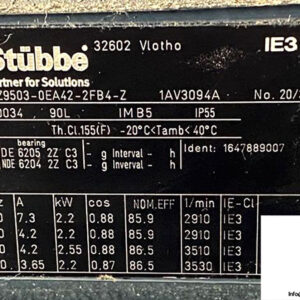

Motor Attachment

Attachment: Stübbe 1TZ9503-0EA42-2FB4-Z Motor
Manufacturer: Stübbe
Type: Motor
Model: 1TZ9503-0EA42-2FB4-Z
Part No.: 20/375752/2
ID. No.: 1647889007

Motor Technical Information

Motor Voltage [V] @ 50 Hz: 230/400 Delta/Star
Current [A]: 7.3/4.2
Rated Power [kW]: 2.2
Rated Speed [RPM]: 2910
Motor Voltage [V] @ 60 Hz: 460 Star
Current [A]: 4.2/3.65
Rated Power [kW]: 2.55/2.2
Rated Speed [RPM]: 3510/3530
Protection Class: IP55
