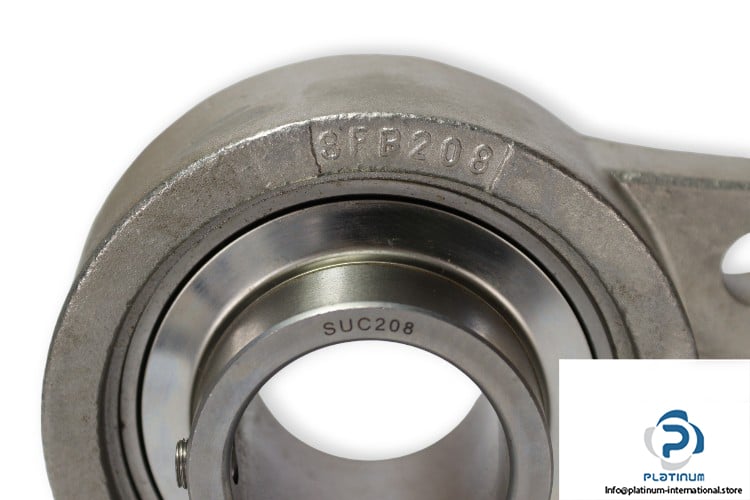

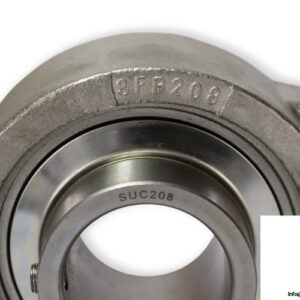

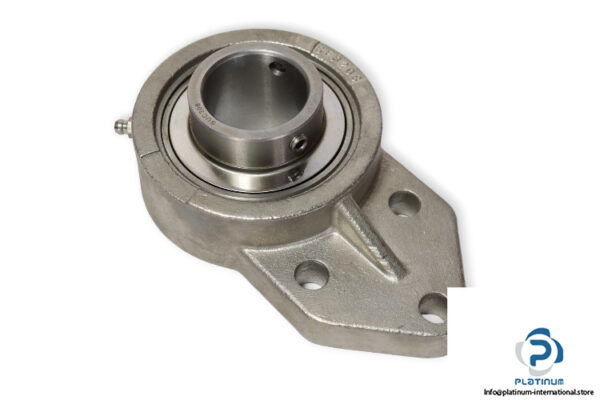

Type: Stainless Steel 3-Bolt Bracket Unit
Model: SUCSFB 208
Housing No.: SFB208
Bearing No.: SUC208

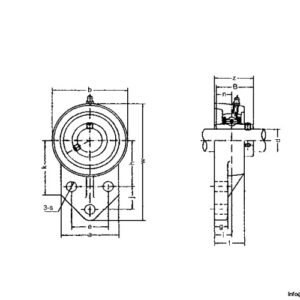

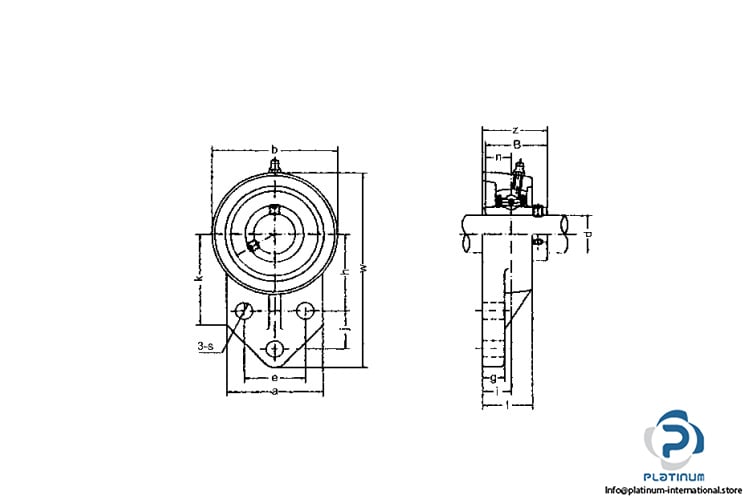

Dimensions
Bore Diameter d: 40 mm
Overall length b: 100 mm
Overall height w: 164 mm
Overall Width z: 51.2 mm
Distance Between Attachment Bolts e: 50 mm
Mounting type: Three-Bolt Flange
Material, housing: Stainless Steel
Retaining feature, inner ring: Set screws
