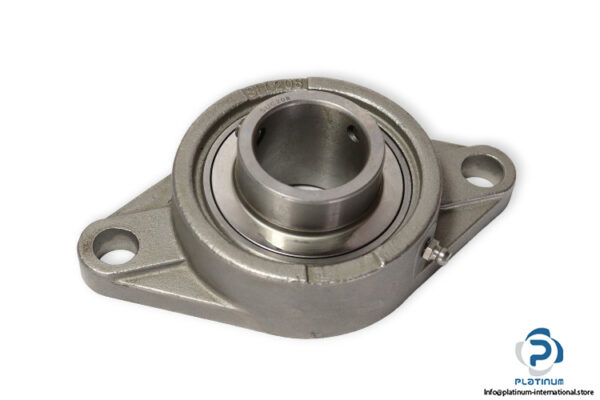

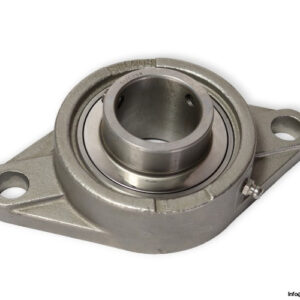

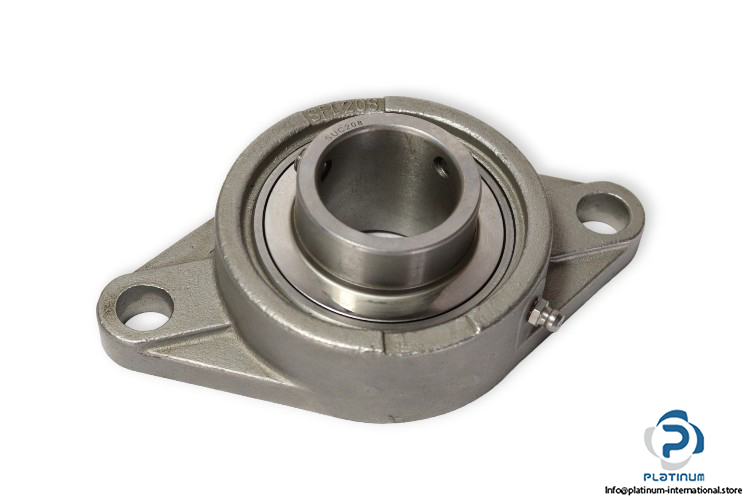

Type: Stainless Steel Oval Flange Housing Unit
Model: SUCSFL 208

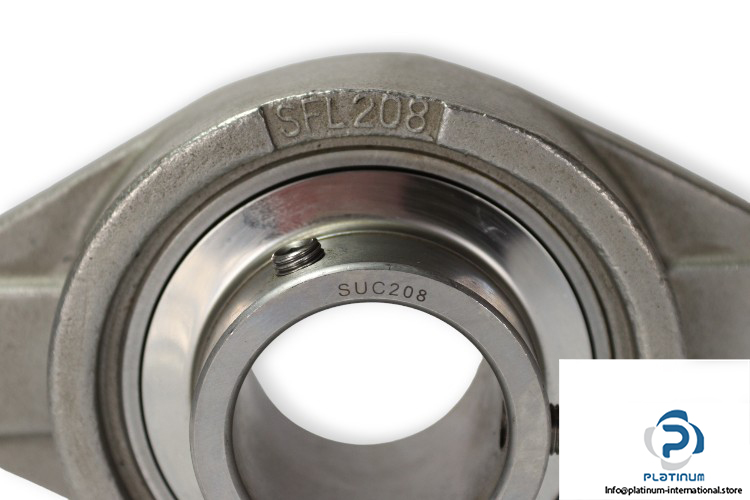

Housing No.: SFL208
Bearing No.: SUC208

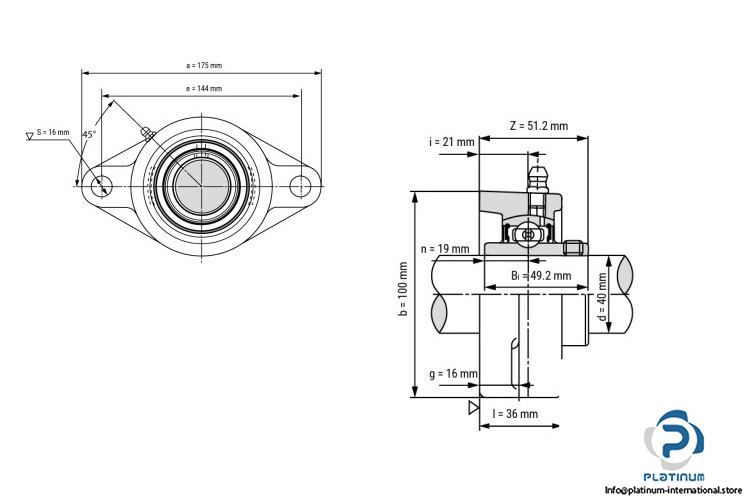

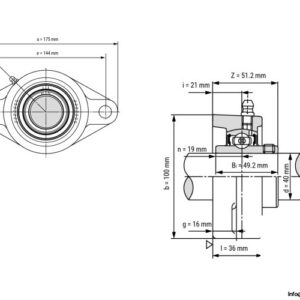

Dimensions
Bore Diameter d: 40 mm
Overall Length b: 100 mm
Overall Height a: 175 mm
Distance mounting surface to bearing center i: 21
Distance Between Attachment Bolts e: 144 mm
Overall Width z: 51.2 mm
Mounting: Oval Flange
Material, housing: Stainless Steel
Retaining feature, inner ring: Set screws
