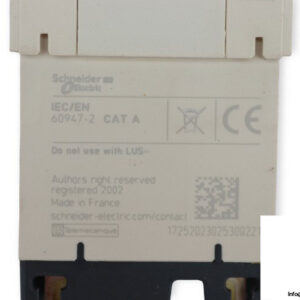

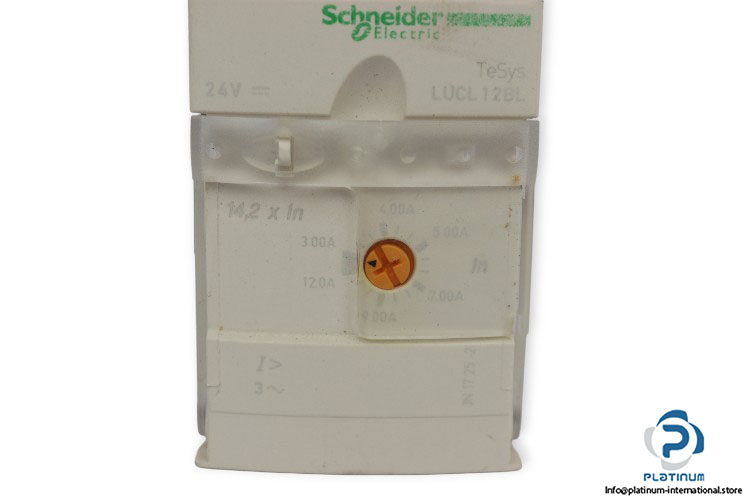

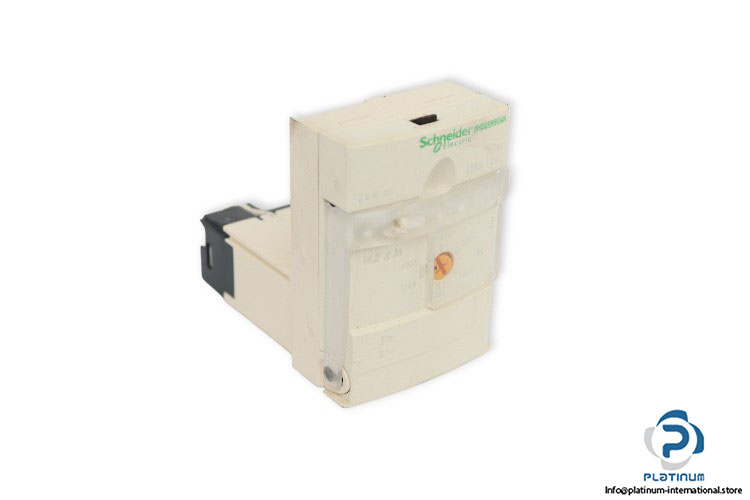

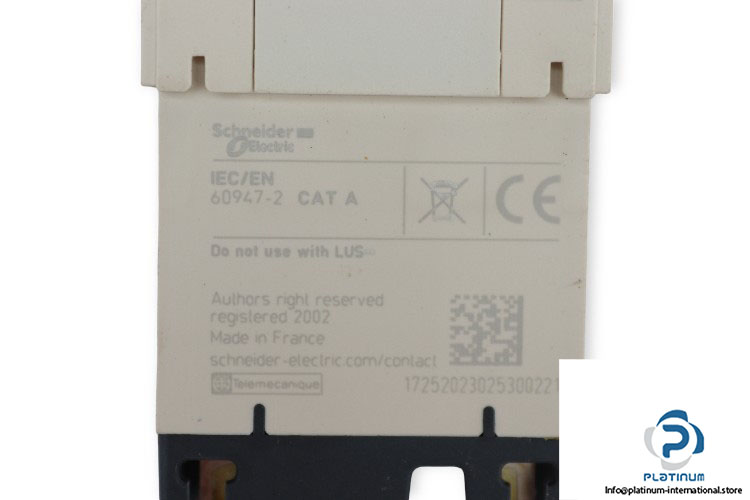

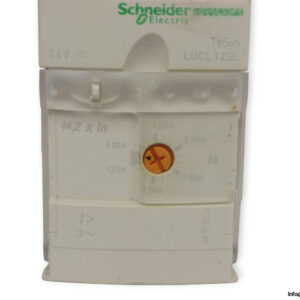

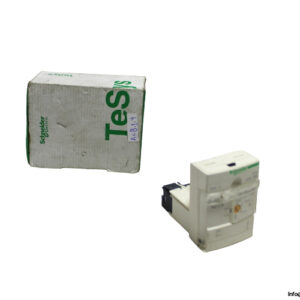

Schneider LUCL12BL Standard Control Unit

Manufacture: Schneider electric
Type: Standard Control Unit
Model: LUCL12BL
Range: TeSys
Device Short Name: LUCL

Device Application: Motor control, Motor protection
Control Circuit Voltage Uc: 24 V DC (20 … 27 V DC)
Rated Motor Current Adjustment Range: 3 … 12 A
Rated Operational Voltage Ue: 690 V AC
Rated Impulse Withstand Voltage Uimp: 6 kV
Rated Insulation Voltage Ui: 690 V
Network Frequency: 40 … 60 Hz
Fixing Mode: Plug-in (front face)
Load Type: 3-phase motor – cooling: self-cooled
Motor Power: 5.5 kW at 400…440 V AC 50/60 Hz
Degree of Protection: IP20
Standard: IEC/EN 60947-2
Tripping Threshold: 14.2 x Ir +/- 20 %
Ambient Air Temperature for Operation: -25 … 70 °C
Dimensions: 45 x 66 x 60 mm
