Manufacturer: TEDEA HUNTLEIGH

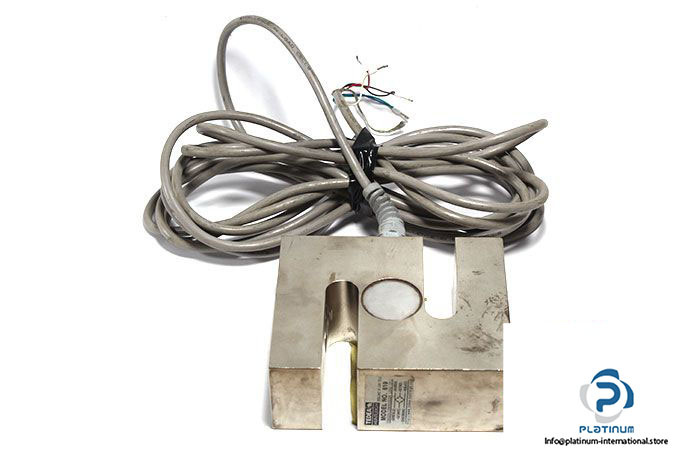

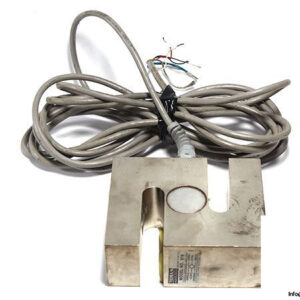

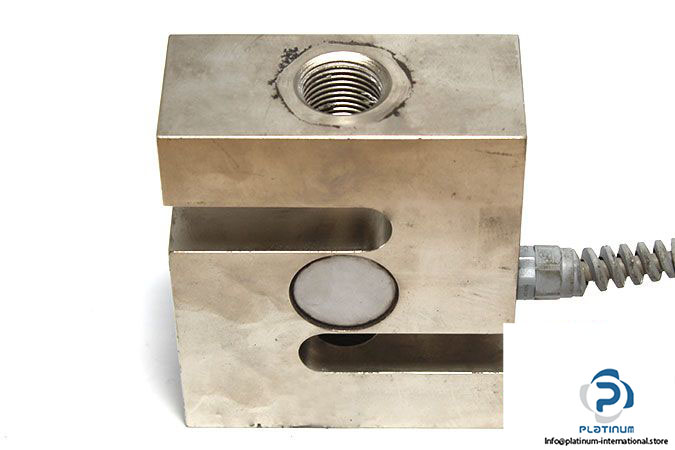

Type: Shear Beam Load Cell

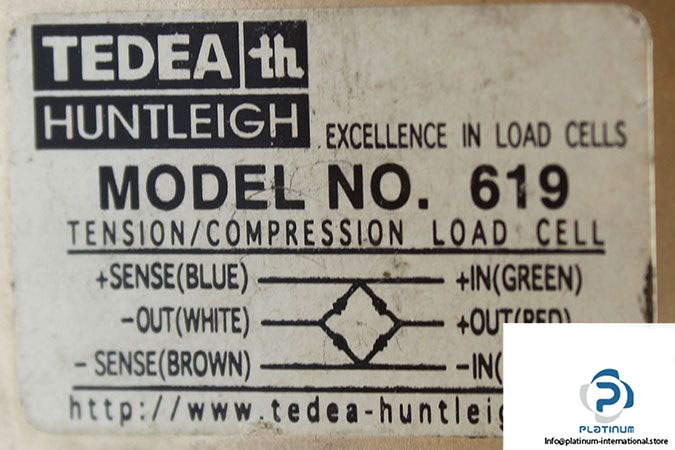

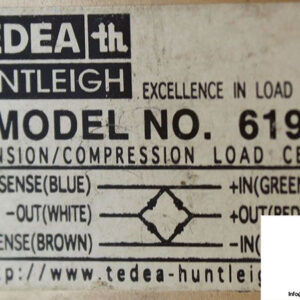

Model: 619
FEATURES
- Capacities 3000 Kg
- Alloy Steel Construction
- Sealing: Welded to IP67
- S-Type Design for Use in Tension and Compression
- Choice of Mounting Threads Metric or Unified Systems
- Six Wire Cable (Sense Circuit)
APPLICATIONS
- Hopper (Tank Weighing)
- Hybrid Scales
- Belt Weighing
- Lever Arm Conversions
- Material Testing Machines
- Vibrations Filling Equipment
- Dynamometers
Maximum weight limit (E max): 3000 kg
Rated Output: 2.0 mV/V
Temperature Compensation: -10…40 °C
Input Impedance: 385±15 Ohm
Output Impedance: 350±3 Ohm
Cable Length: 5 m
Cable Type: 6-Wire, Braided, Polyurethane, Dual Floating Screen
Protection Class: IP67
Weight: 3.340 kg
